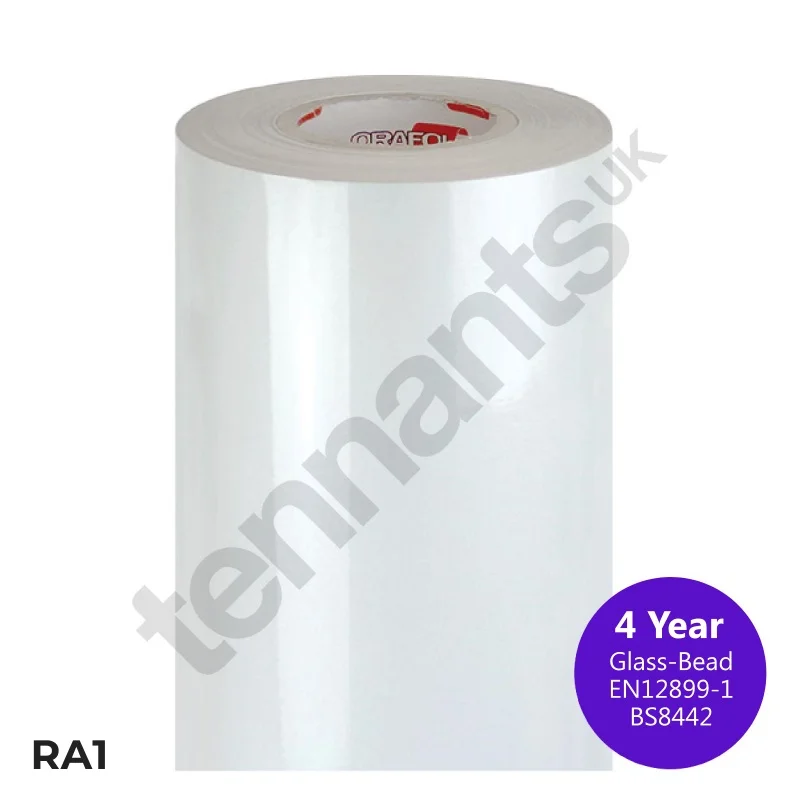

Oralite 5430 Construction Grade

With a High-Tack Adhesive for plastic & metal surfaces, Oralite 5430 Construction Grade is certified to EN12899-1 & BS8442 at RA1. This glass-bead reflective has a 4 year durability and is a specialist variant of 5400.

5400 Spec Sheet
1235mm

Oralite 5430 Construction Grade film is designed for temporary road sign applications that need greater adhesion. Which is provided by a high-tack adhesive, formulated for polyolefinic as well as metal surfaces. This RA1 glass-bead reflective has a smooth surface that can be digitally or screen printed. In addition to a printed watermark, the liner carries both its product code & a batch number for tracing.

Oralite 5430 High-Tack has a 4 year outdoor durability and is available in just white, yellow & red. Moreover we only distributed this film in standard 1235mm rolls. The Orafol webpage for Oralite 5430 Construction Grade has more details, data sheets, certificates & application instructions.

Quick-Specs

Film: Oralite 5430 Construction Grade
Tech: RA1 Glass Bead Reflective
Roll Width: 1235mm
Roll Length: 50 metre rolls
ST Colours: 0.130mm thick
Variant: High-Tack version of 5400.

Material Details

  • Reflective Class: RA1
  • Standard: EN 12899-1 / BS8442
  • PVC Film with Silicone Paper Liner
  • Technology: Glass Bead
  • Durability: 4 year life
  • Colours: 3 Standard
  • Pressure Sensitive High-Tack Adhesive for Metal / Plastic*

Compatible Products

  • Digital Ink: 5019i (uv) / 5017 (eco)
  • Transparent Film Overlay: 5051
  • Protective Overlay: 290F
  • Screen Ink: 5018
  • Lettering Film: 5071

Adhesive* Check Substrate Compatibiity

Colours & Pattern

Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.

Standard Colours
Watermarked - Icon

Oralite 5430 Downloads

The Orafol website has a selection of data-sheets, instructions & safety info for Oralite 5430. Below you will find a set of links for those downloads.

Traffic Signs & Construction Zones
Data Sheet
Application Instructions
Safety Info
