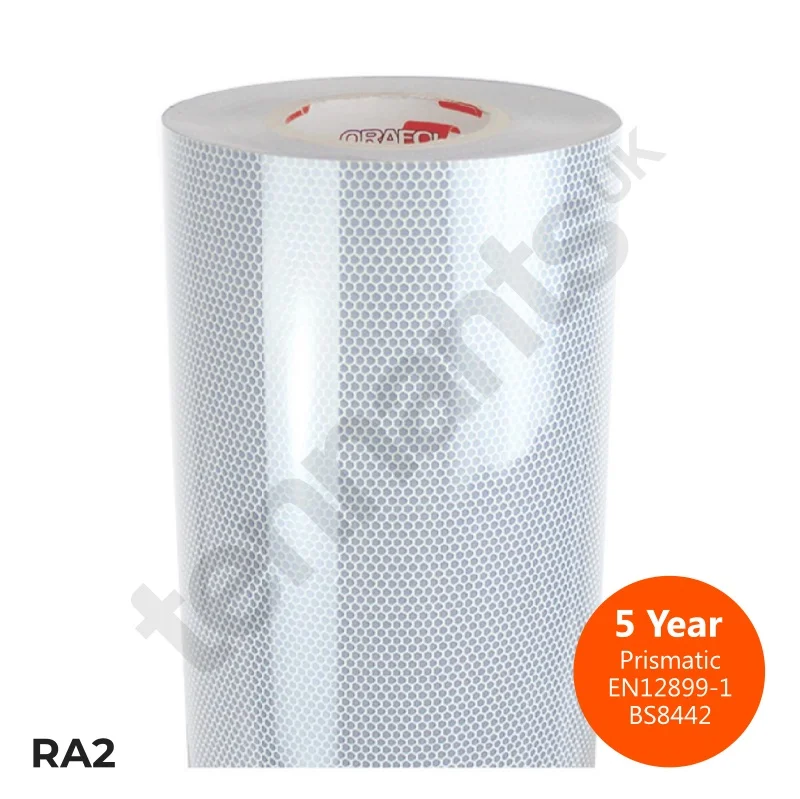

Oralite 5960 High-Intensity Prismatic Construction Grade

Oralite 5960 High-Intensity Prismatic Construction Grade is certified to EN 12899-1, Class RA2 & designed for temporary road signs. And this micro-prismatic reflective has a 5 year durability as standard before printing.

5960 Spec Sheet
760mm 920mm 1235mm

Oralite 5960 High-Intensity Prismatic Construction Grade film is aimed at temporary signs & work-zones where visibility is problematic. Being micro-prismatic, it provides a high enough level of reflectivity to meet any site safety needs. Thus 5960 High-Intensity is ideal for your temporary traffic control, guidance and site warning signs.

With a 5 year outdoor service life, Oralite 5960 comes in 7 standard & 2 fluorescent colours. And this RA2 reflective also has a fully compatible line of protective laminates, inks and a lettering film. The Orafol webpage for Oralite 5960 High-Intensity Prismatic Construction Grade has more details, data sheets, certificates & application instructions.

Oralite 5960 Quick-Specs

Film: Oralite 5960 High-Intensity Prismatic Construction Grade
Tech: RA2 Retroreflective Prismatic Film
Roll Widths: 760mm / 920mm / 1235mm
Roll Length: 50 metre rolls
ST Colours: 0.295mm thick
FL Colours: 0.385mm thick

Material Details

  • Reflective Class: RA2
  • Standard: EN 12899-1 / NHSS
  • Acrylic Film with Polypropylene Liner
  • Technology: Prismatic
  • Durability: 5 year life*
  • Colours: 7 Standard / 2 Fluorescent
  • Pressure Sensitive Adhesive for Metallic Surfaces

Compatible Products

  • Digital Ink: 5019i (uv) / 5017 (eco)
  • Transparent Film Overlay: 5061
  • Anti-Graffiti Overlay: 5095
  • Screen Ink: 5018
  • Lettering Film: 5081

Durability* Non Printed

Colours & Pattern

Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.

Standard Colours
Fluorescent Colours

Oralite 5960 Downloads

The Orafol website has a selection of data-sheets, instructions & safety info for Oralite 5960. Below you will find a set of links for those downloads.

Traffic Signs & Construction Zones
Data Sheet
Application Instructions
Safety Info
