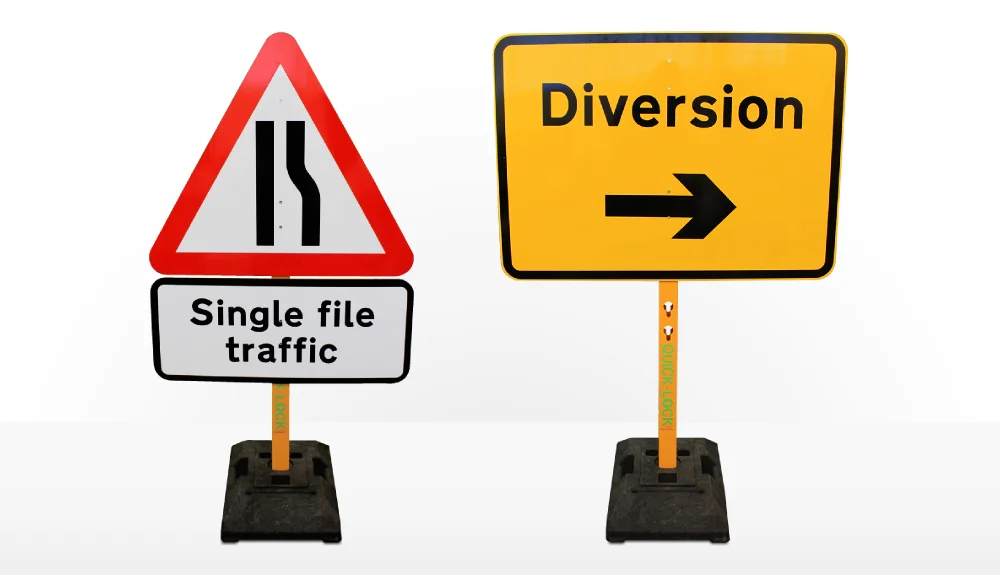

Quick-Lock Post & Signs System

A hot-swap, weight-saving and recyclable sign system.

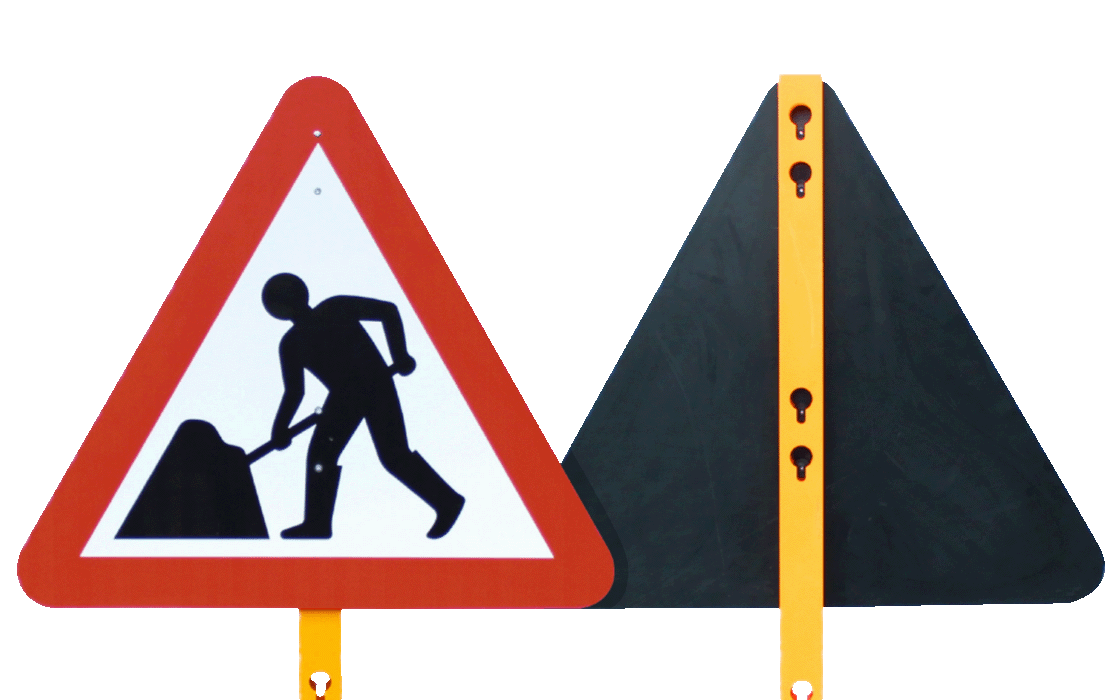

Quick-Lock Post System - Men at Work 7001 Sign

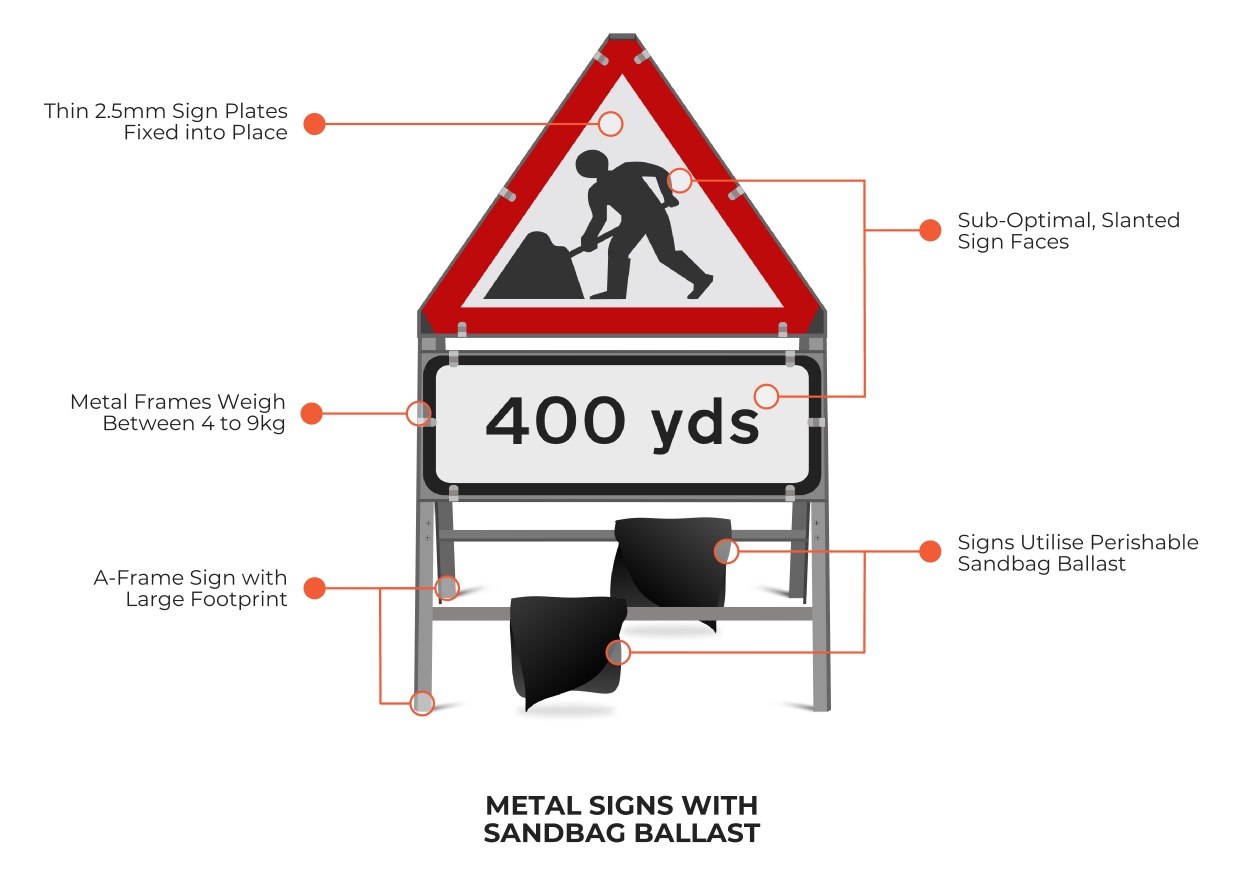

Switch to Quick-Lock Signs and Free Yourself from Heavy Frames & Sandbags

The Quick-Lock Post & Signs System is a game-changing solution for Urban and Streetwork Schemes. First, it swaps steel frames for lighter, vertical posts with a compact footprint. Fixed-weight bases that do not split or spill replace traditional sandbag ballast. And more durable hot-swap plates take over from metal sign faces. Which together create modern temporary signs that are flexible, durable, and impressively light.

As a modular system, signs are configurable on-demand, signs swapped & Supplementary Plates added. Each part is replaceable and made from recycled or recyclable materials. Thanks to its reduced weight and stackability, more units can be transported, streamlining on-site deployment. Quick-Lock Signs deliver both sustainability & weight-savings that lower project costs & carbon impact.

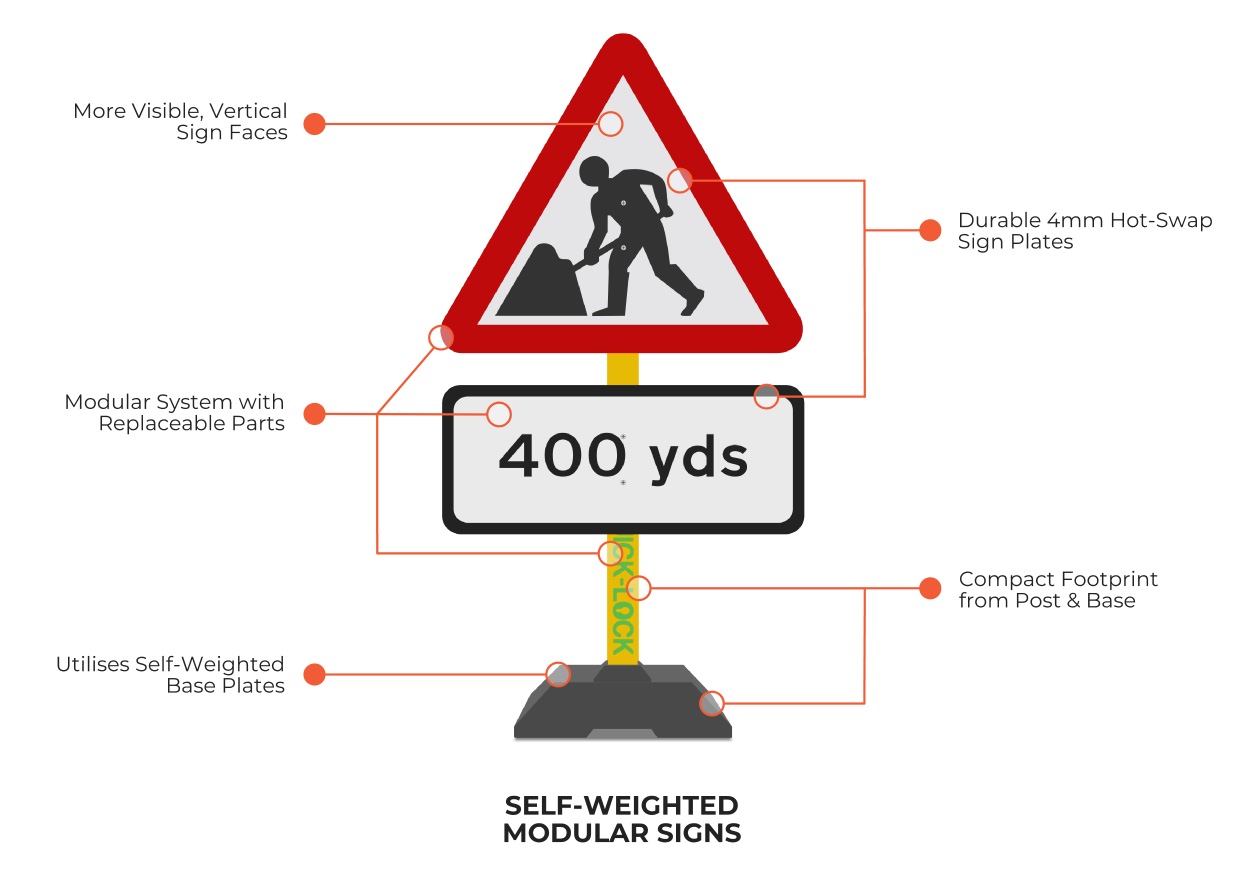

  • Space Saving Modular Sign System
  • Hot-Swap Quick-Lock Sign Plates
  • Uses Durable Enviroplate Substrate
  • Vertical Posts for Improved Visibility
  • Weighted Bases mean Sandbag Free
  • Weight-Savings Increase Loadouts
  • Stacks Compact for Optimised Deployment

Modular & Sustainable

A Pedestrian-Safe Weight & Space Saving Sign System

STREET SAFE

Round Edged Signs, Hi-Vis Posts & Bases

HOT-SWAP SIGNS

Quick-Lock Lugs & Keyhole Slotted Posts

MORE VISIBLE

Vertical Signs provide Improved Clarity

SUSTAINABLE

Recyclable Sign Plate, Slotted Post & Base

WEIGHT SAVING

Approx. 21kg per Sign, includes 18kg Base

Efficient & Sustainable Signs

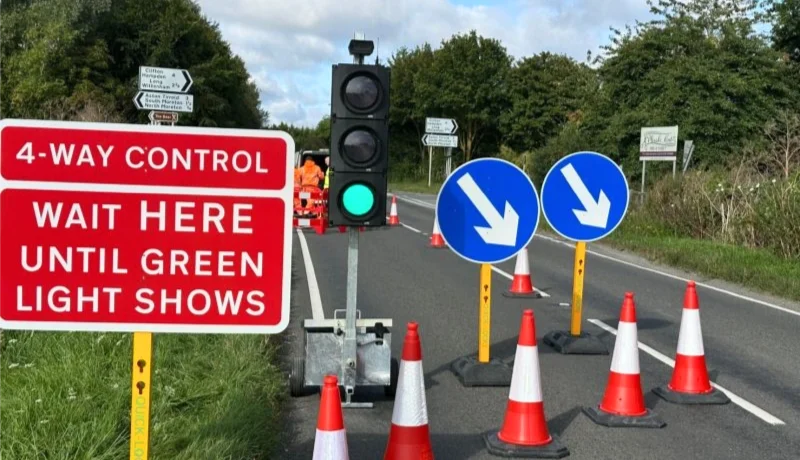

Modernise your worksites with Quick-Lock Post & Signs and utilise equipment that is efficient & sustainable. One benefit is that it is modular, stacks neater, and is more compact than metal frames. The sign plates use Enviroplate, our substrate that lasts for years. Quick-Lock lugs help the sign plates hot-swap in seconds without tools. Switching from frames to posts is also more compact and less intrusive, reducing trip hazards.

Our sign plates, PVC posts, and bases are recyclable and can be used to make new products. The bases are made from recycled PVC with a footprint of about 6.21kg CO2e per 18kg unit. The posts are manufactured from rigid recycled PVC to ensure strength; this results in 0.6kg of CO2e per Post. Enviroplate uses recycled ABS with an approximate 0.59 CO2e per kg. Once recycled, it’s formed into new sheets of substrate. Summarising, a Chapter 8 sign will have an approximate material CO2e footprint of 7.2 kg and weigh about 21kg.

HOT-SWAP SIGNS

Sign Plates Can be Changed in Seconds

Drop to Lock Signs

FAST DEPLOYMENT

Tool Free Assembly, Parts Slot Together

Quick-Lock Signs -Tool Free Assembly

SANDBAG FREE

Uses Sealed Weighted Bases for Ballast

Sandbag Free Sign Assembly

SMALL FOOTPRINT

Reduced Trip Hazard with Post & Base

Compact Weighted Base for Quick-Lock Signs

Weight Saving

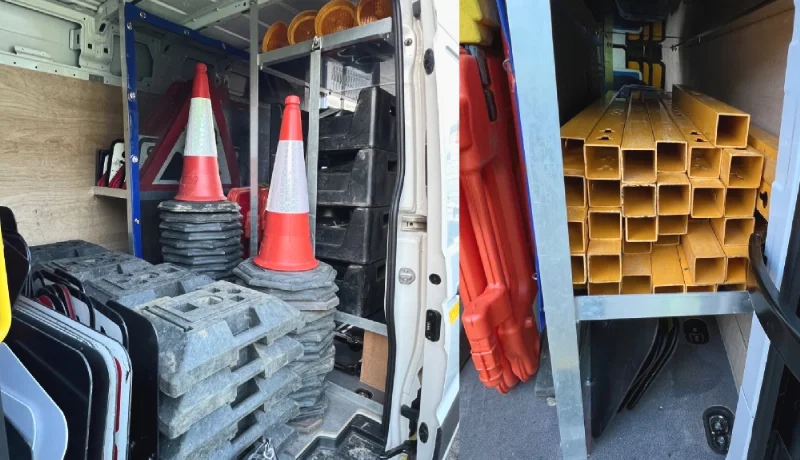

Alongside improving sign assembly and durability, we focused on weight savings. A Quick-Lock Signs 21kg weight reduces deployment costs for each site, thanks to its modular parts. Not to mention reducing its overall impact on the environment. The table below shows the savings based on standard Site Schemes. Results show most site installations can be completed by a single vehicle, reducing the need for multiple trips and cutting labour & fuel costs. As our case study shows, the effects are wide-ranging and impressive.

Note: Our wind loading tests followed BS 8442:2022 Appendix C methods based on the maximum expected winds for urban and rural areas in all but the most severe conditions. Approved wind-loading ballast weights and base numbers can be found in the downloads section.

Site SchemeMetal Frame & Sandbags - kgQuick-Lock Post & Base - kgWeight Savings
2 Way Lights 30mph867721146kg / 17%
3 Way Lights 30mph12621037225kg / 18%
4 Way Lights 30mph16551433222kg / 13%
Road Closure & Diversion - 20 Signs870605265kg / 30%
Road Closure & Diversion - 30 Signs1210813397kg / 33%

Specification Product Components

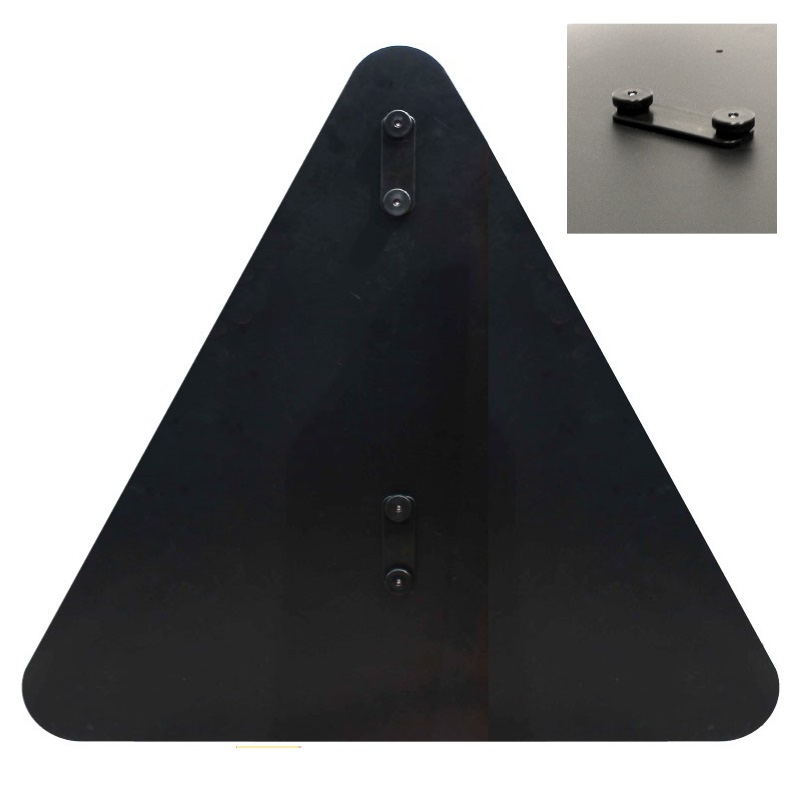

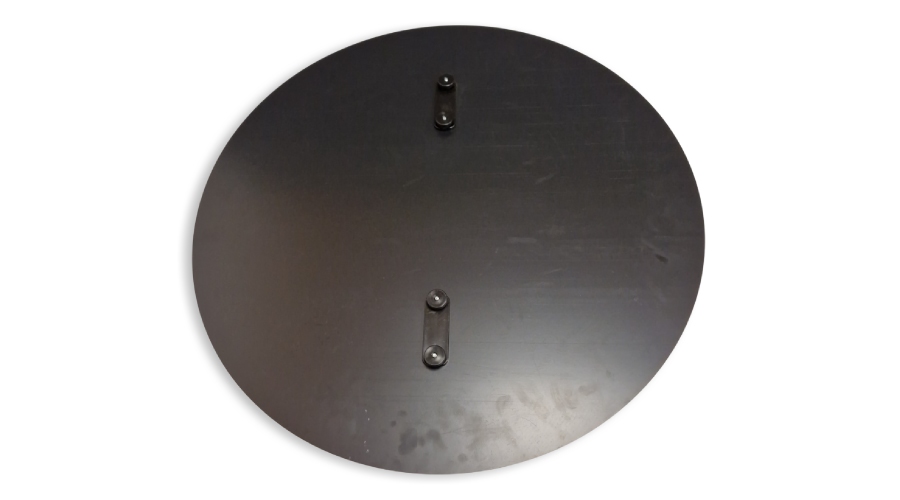

Sign Plates

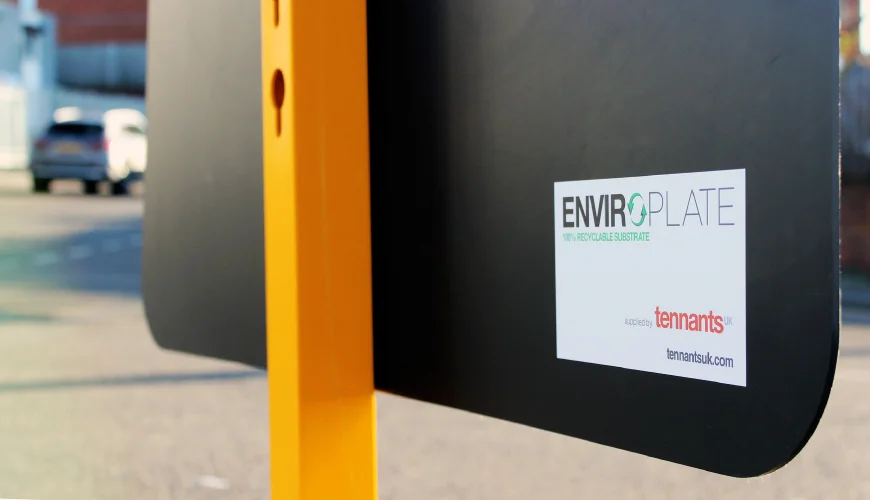

Our sign plates use Enviroplate substrate, because it can withstand transport and handling without breaking. And it’s highly resistant to bending out of shape, so your signs last twice as long. For fast tool-less assembly, we fit plastic Lugs onto the rear to match our posts.

  • Material: Recycled ABS in a semi-matt Black
  • Max Size: 750mm Circle/Triangle & 1050mm Rectangle
  • Fittings: Quick-Lock Toggles or Lugs
  • Safety: Sign Substrate Does not Swell, Split or Fray
  • Sustainability: Made from Recycled & Reclaimable Materials
  • Sign Faces: Using Pre-printed Oralite Reflective
  • CO2 Footprint: Approx. 1.5kg CO2e per kg of PPC

Slotted Post

The Slotted Post displays signs vertically, for increased visibility & a smaller footprint. To mount a sign, simply insert the Lugs into the keyholes and push down to lock it in place. For extra security, each post can be attached to the base using a metal pin.

  • Material: Recycled PVC in a Hi-Vis Yellow
  • Size: 60x60mm Post in 1/1.5/2/2.5m Lengths
  • Features: Cut Keyholes for Quick-Lock Lugs
  • Safety: Detaches & Deforms on Impact
  • Sustainability: PVC Can be Reground or Recycled
  • Co2 Footprint: Approx. 0.345kg CO2e per kg of PVC

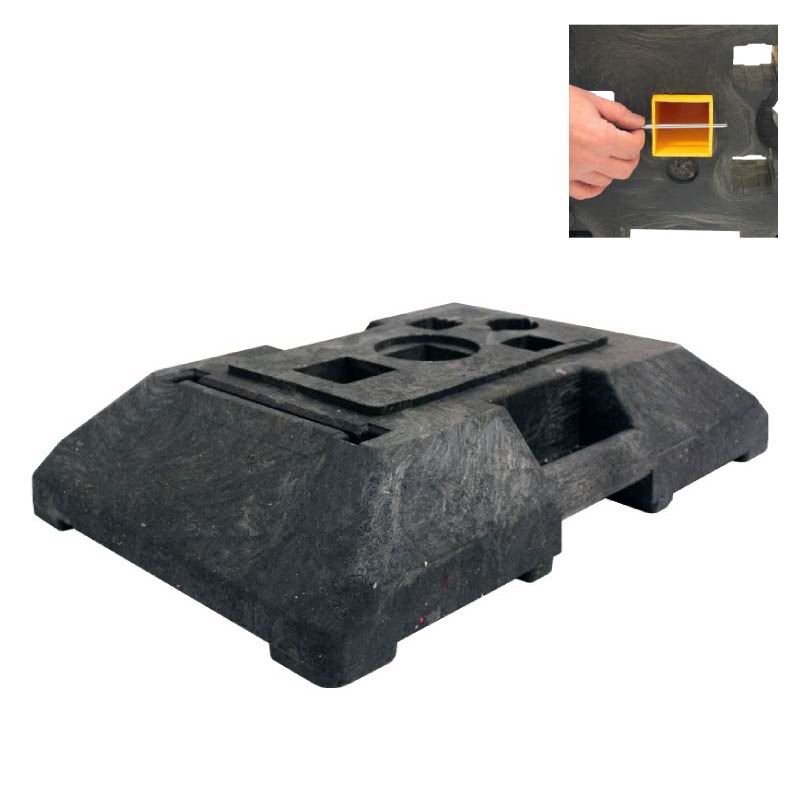

Weighted Base

For stability, the assembly uses a solid sealed base that provides a guaranteed weight. As a result, you get a reusable ballast that’s durable & does not need re-filling. And increased sustainability, since it’s made from recycled PVC & plastics that can be reclaimed.

  • Material: Recycled Thermoplastic PVC Base
  • Weight: 9kg or 18kg Ballast Bases
  • Size: 410x410mm or 595x390mm
  • Features: 62mm Post Hole & Carry Handles
  • Safety: Low Profile & Can Be Driven Over
  • Co2 Footprint: Approx. 0.345kg CO2e per kg of PVC

Downloads Sheets & Guides

For more details on this product, take a look at the sheets, guides & webpages below.

Product Sheet
Assembly Guide
Wind Loading & Ballasts
Sustainability
Case Study
Enviroplate Substrate - Specification

Reduce Your Worksite Costs with Modern, Sustainable Streetwork Signs

Switch to the Quick-Lock Post & Signs System, for a modular solution that provides savings on deployment & assembly costs. As well as lowering your environmental impact, thanks to parts that are reusable, last longer and are recyclable.

Phone

Email

Form

For more on the Quick-Lock Post System, contact your account manager or get in touch. Contact us on 0115 9738088 or email tmsales@tennantsuk.com. Otherwise fill in the quick contact form above with your details.
