EnduraSign Frame
A durable QuickFit sign frame for 300mm plates.
Slash Non-Compliance Fines for Fallen Signs with the EnduraSign Frame

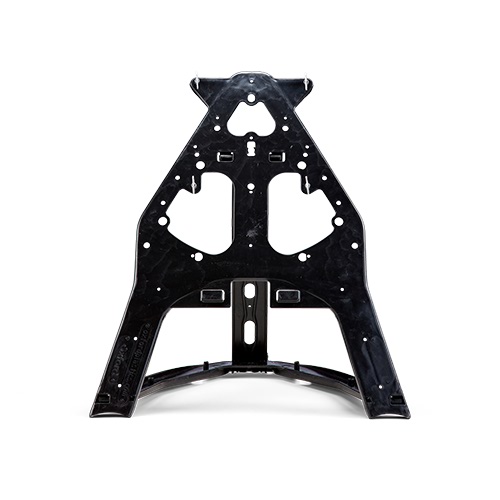

EnduraSign by Oxford Plastics is a composite Chapter 8 Streetwork sign frame that withstands heavy handling. This 870mm frame, weighing 3.3kg, is designed for 300mm spaced QuickFit signs and includes four drop-lock toggles. Featuring crack-resistant recycled plastic and repairable fittings, EnduraSign Frame’s are sustainable. It’s also compatible with 9kg EnduraSign Ballast blocks, which combine to make it highly wind-resistant. So it can take everything nature throws at it without falling over, a perfect addition to anyone’s traffic equipment.
LIGHT & COMPACT

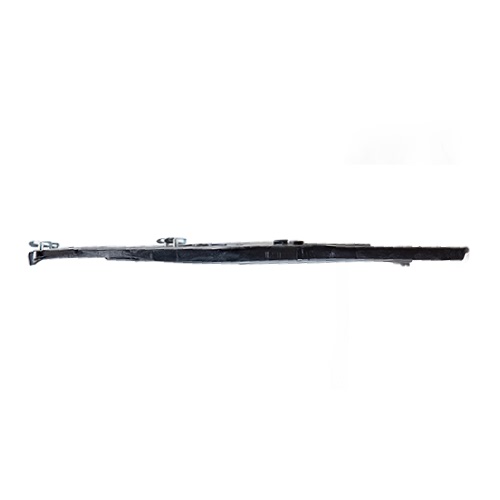

Frame is 3.3kg & Folds Down to 35mm Wide.
DURABLE
Crack-Resistant & Withstands Being Driven Over.
SERVICABLE
Replaceable Drop-Lock Toggles and Ballasts.
SUSTAINABLE
Recyclable Frame has a CO2e of just 23kg.
Durable Temporary Road Signs
EnduraSign Frame’s feature a composite frame resistant to cracking and capable of withstanding being driven over. As a result, it can withstand rough handling and accidental damage from being dropped on-site. Yet this modular system enables teams to assemble and display various sign configurations. It also has a weight-saving and slim profile, resulting in deployment savings.
Switching to EnduraSign Frame & Ballast blocks can increase your sustainability. Both items utilise recycled PVC plastic, which can be reclaimed and reused at the end of their life. At 0.35 CO2e per kg, it is about 75% greener than virgin PVC materials. Then there’s the built-in reparability, with sign faces, drop-locks, and reflective strips all being serviceable.
Durable & Damage Resistant Composite Frame

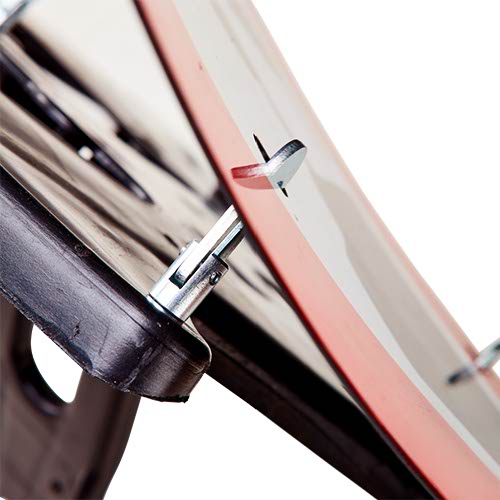

Features 4 Drop-Lock Sign Plate Toggles

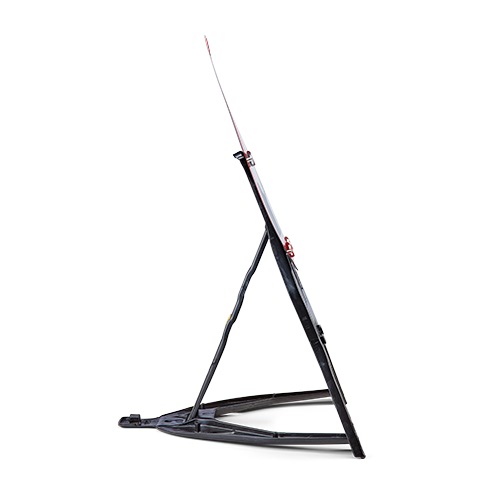

Accepts 300mm Spaced Quick-Fit Sign Faces

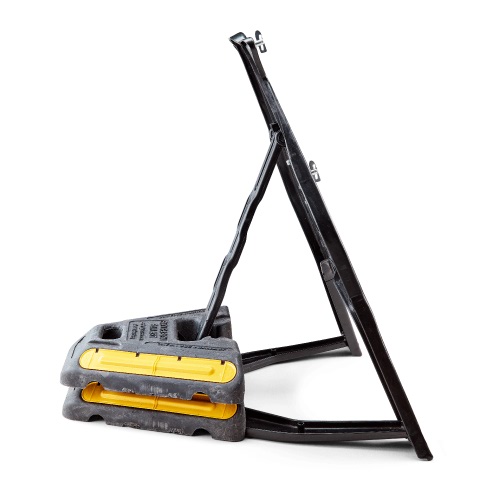

Compatible with Reusable 9kg Ballast Blocks
Lightweight Frame Helps Lower Scope 3 Emissions
Repairable Faces, Toggles & Ballast Reflective
EnduraSign Frame Specs
EnduraSign Frame
Dimensions
800x735x870mm
Depth
35mm Closed
Weight
3.3kg
Quantity
50 per Pallet
Toggles
4 Antiluce Drop Locks
Colour
Black / RAL Codes (MOQ’s apply)
EnduraSign Ballast
Dimensions
555x407x90mm
Height
90mm & Stackable
Weight
9kg
Quantity
60 per Pallet
Visability
Reflective Strips
Colour
Black & Yellow
Compliance Info
Safety at Street Works and Road Works (Red Book)
Chapter 8 – Traffic Signs Manual
Conforms to British Standards
EnduraSign Frame Wind Loading
| EnduraSign Wind Loading | Windspeed C: 8.7m/s (19mph) | Windspeed B: 17.6m/s (39mph) | Windspeed A: 26.3m/s (58mph) | |||
|---|---|---|---|---|---|---|
| QuickFit Assembly | Sandbag Weight | EnduraSign Ballast | Sandbag Weight | EnduraSign Ballast | Sandbag Weight | EnduraSign Ballast |
| 750mm Triangle | NA | None | 8kg | One Block | 22kg | Three Blocks |
| 600mm Square | NA | None | 7kg | One Block | 21kg | Three Blocks |
| 750mm Circle | NA | None | 5kg | One Block | 17kg | Two Blocks |
| 1050x750mm Rectangle | NA | None | 13kg | Two Block | 36kg | Four Blocks |
| 600x450mm Rectangle | NA | None | 4kg | One Block | 13kg | Two Blocks |
| 1050x450mm Rectangle | NA | None | 7kg | One Block | 20kg | Two Blocks |
| 750mm Triangle + Supplementary | NA | None | 9kg | One Block | 26kg | Three Blocks |
Downloads Sheets & Guides
For more details on the EnduraSign Frame & ballast blocks, take a look at the PDF sheets, guides & pages below. Please note the PDF’s are reduced in size for the Web, larger high-quality versions are available.
Product Flyer
Product Sheet (external)
Technical Guide (external)
Product Page (external)
Save Weight & Simplify Your Worksites Temporary Road Sign Deployment
Modernise your temporary road signs with the EnduraSign Frame & Ballast blocks. Its modular design means a basic Chapter 8 Signs Kit weighs just 110 kg approximately. Switch to EnduraSign now and streamline your on-site road sign deployment.
For pricing or information on the EnduraSign Frame, contact your account manager or just drop us a line. Contact us on 0115 9738088 or email tmsales@tennantsuk.com. Otherwise fill in the quick contact form above with your details.
