Our Quick-Lock Cone Reflectors offer a more sustainable answer to roadworks delineation than battery lamps.

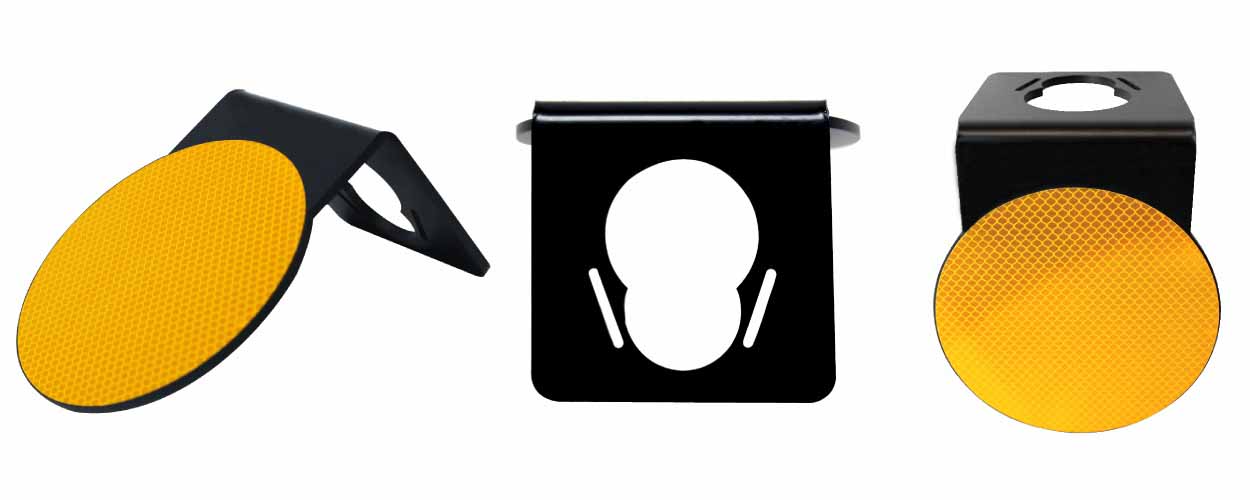

Quick-Lock Cone Reflectors
Add Cone Reflectors to Your Site Delineation & Improve Your ESG Rating
Developed with our partners and TMCA members, Quick-Lock Cone Reflectors are an alternative to warning lamps. Especially if you are looking to improve your companies sustainability and ESG score. By using our reflectors instead of powered lamps you’ll cut down on single-use 6v batteries. And lower your projects overall carbon footprint, all thanks to our compact & recyclable discs. Plus you save on deployment and maintenance, since it’s largely fit and forget – Fitting Guide.
A Sustainable Alternative
Since there’s no battery or working parts, our cone reflectors are more sustainable than powered lamps. That’s because there’s no battery to transport to site, replace or bin. To say nothing of the fact they’re made from our durable & recyclable Enviroplate. Moreover they are light and compact, so you can carry & deploy more at one time.
- Reflectors weighs just 144g per unit.
- No battery, lens or bulb required.
- Self-contained, no maintenance needed.
- Made from 100% recyclable substrate.
- Durable and resistant to weathering.
- Light and compact, lowers equipment loads.
- Mount face upwards for extra visibility.
CONE REFLECTORS: YouTube
Product Specification

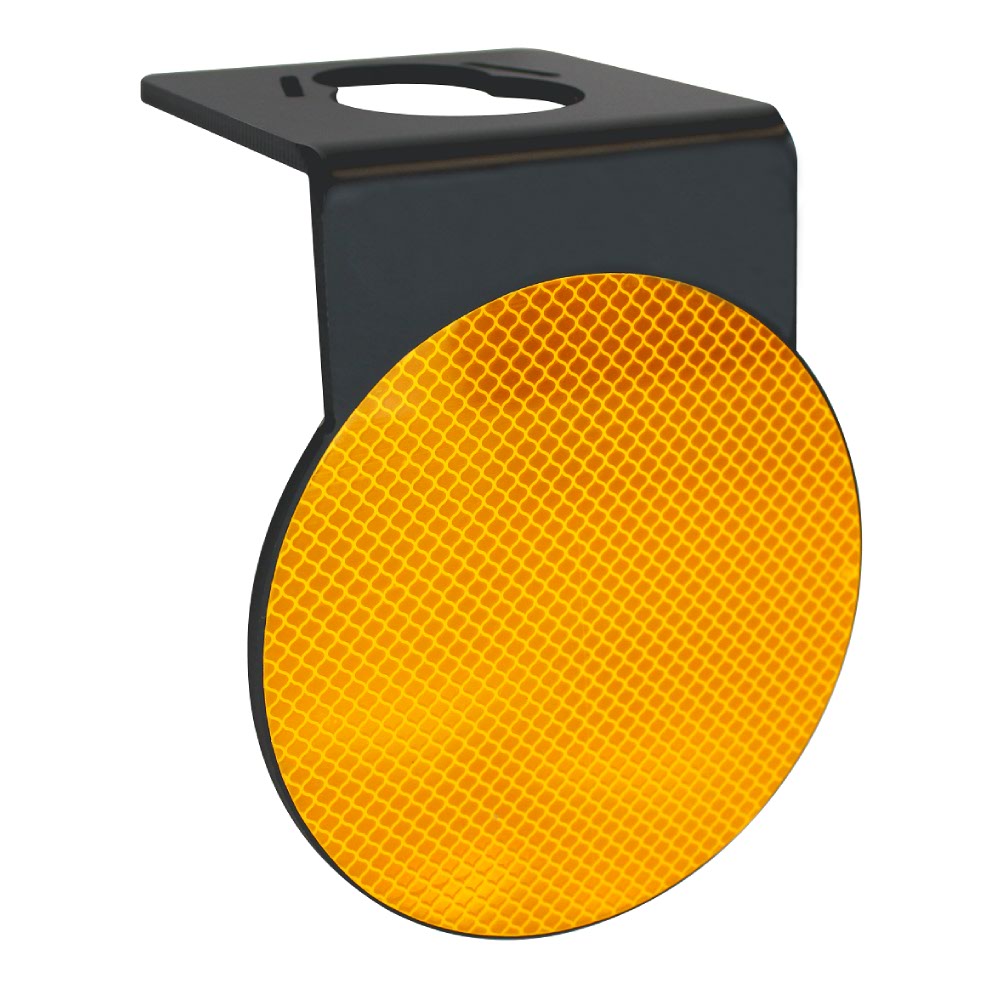

We’ve ensured the Cone Reflector is in accordance with of TSRGD 2016, Diagram 560. Which meant complying with all size and design requirements this entailed. To maximise its visibility, we chose a high-performance reflective from Orafol. And we’ve tested its socket and the units suitability for Highways use.
- Made from 100% recyclable Enviroplate.
- Features single or dual Reflectors Faces.
- Uses RA3B prismatic reflective Oralite 6910.
- Duo units have yellow front & red rears.
- Designed to Diagram 560 of TSRGD 2016.
- Various Quick-Lock sockets available.
- Simply push and lock onto a Cone Top.
CONE REFLECTORS: Product Flyer
A Safe, Compact & Compliant Alternative
National Highways Accepted

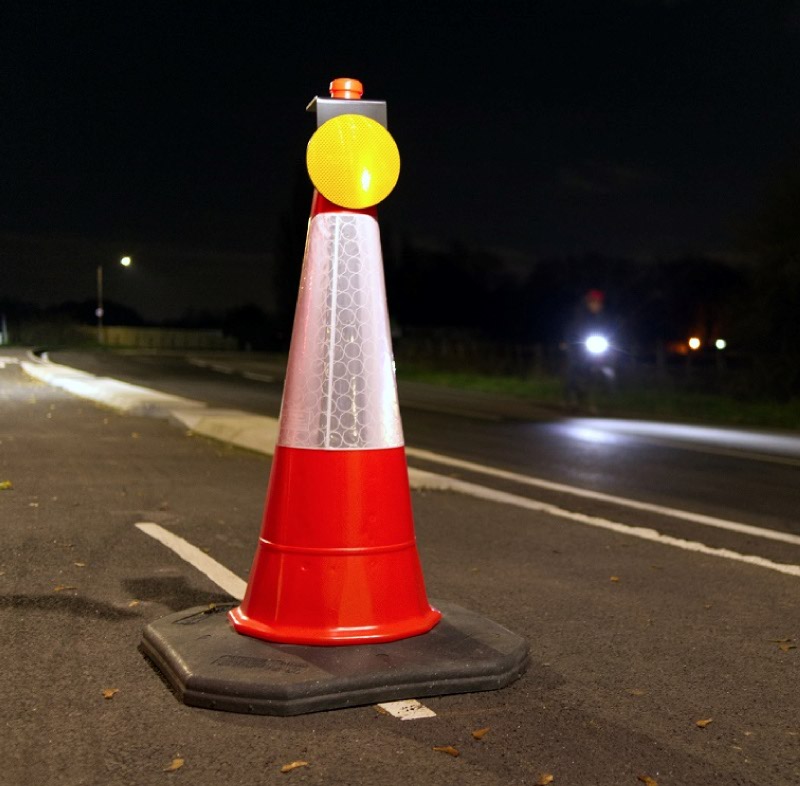

As you know barriers, warning lamps and cones have long been used to identify overnight roadworks. Because clearly delineating your works area is a vital part of road safety. Our reflectors provide a practical alternative, thanks to their high-performance faces. Which reflect more light back to a vehicle than a LED, Traffic Cone or Bollard sleeve.
Our Quick-Lock Cone Reflectors are based on the rules for temporary vehicle restraint systems & central reservation barriers. And they’re designed in accordance with Diagram 560 of TSRGD 2016. So their use on traffic cones is consistent with existing legislation. Especially if it increases delineation and improves worksite safety. Our main contact on compliance matters is a Technical Officer of the TMCA.
Vehicle Impact Testing
During collision testing, results showed our 144g Reflectors presented little hazard when compared to 1kg lamps. Not only do they travel less distance on impact, but they also flatten when driven over. This reduces the danger they present to other vehicles as projectiles and obstacles to those following. Which lowers the need for live-lane retrieval by the on-site workforce.
Vehicle tests included running into and over reflectors on 1m traffic cones. For comparison, we used standard battery powered warning lamps. Our test vehicle was run at 60mph and all tests were run 5 times. Some footage of the test can be seen on the clip below and was captured by drone.
CONE REFLECTORS: Vehicle Testing
A More Sustainable Solution to Streetworks Delineation
Lower your carbon footprint and provide total works delineation with Cone Reflectors. As a result you’ll improve your project & company’s overall sustainability. While cutting your site deployment costs and ongoing maintenance needs.
For pricing or further information, contact your account manager or our sales team. Contact us on 0115 9738088 or email tmsales@tennantsuk.com. Otherwise fill in the quick contact form above with your enquiry details.
