CLS621 Printing Preferences

CLS621 Printing Preferences

This knowledge base article shows you the CLS621 Printing Preferences used for printing number plates on our reflective components. Use these settings as the default for your modified printer. Or select them when prompted to by our plates software. Click the images below to see them full size.

Printing Onto Reflective

Having the correct printer property settings is vital to your number plates legality. Because these settings not only set its default media source and method. But they also define the overall quality, speed and opacity of each print. So to ensure your number plates comply with British Standards, only use the settings we provide.

The images below show the settings used to print number plates onto our reflective. In brief, you should pay special attention to all the highlighted values. Use these values if using plain, lipped and badged sheets or rolls of white and yellow reflective.

Tab 1: Page Setup

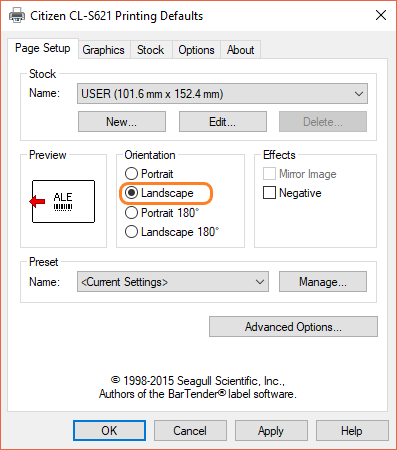

CLS621 Printing Preferences - Page Setup

Page Setup tab settings

The first tab called Page Setup, sets the default printer orientation to landscape. So your registrations are printed correctly along the media’s length.

Tab 2: Graphics

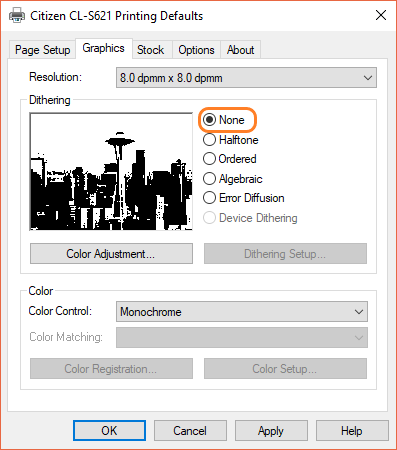

CLS621 Printing Preferences - Graphics

The Graphics tab preferences

Next up is the Graphic tab. Here you’ll find the basic settings used to define print resolution or dpi. As well as the dithering mode, which should be set to None. The color control defaults to Monochrome, since your machine prints in black only.

Tab 3: Stock

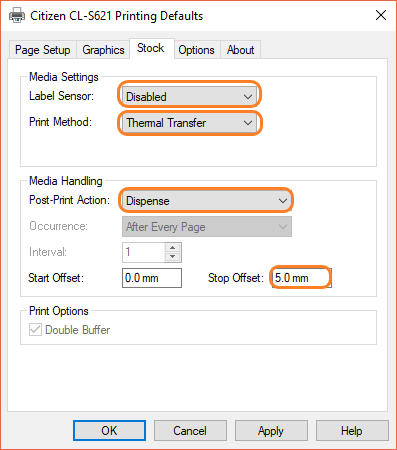

CLS621 Badged Sheet stock

Stock tab

Then we come to the third tab called Stock. This section has the settings for your printers interaction with media. Typically used to detect labels, its been set instead for thermal transfer and to dispense on print.

Tab 4: Options

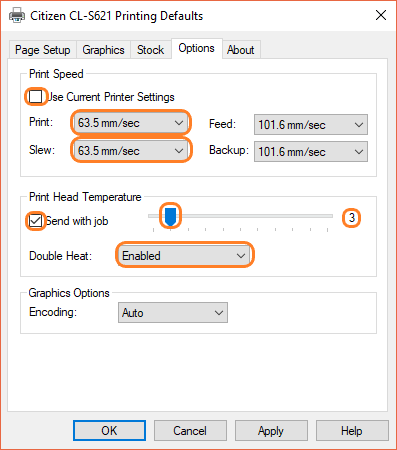

CLS621 Badged Sheet option

Defaults for the Options tab

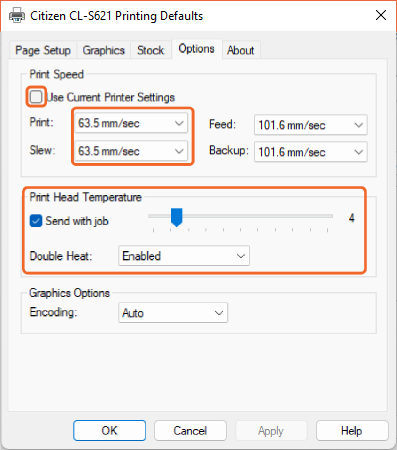

Lastly we have the print Options settings. Here your printers speed, temperature and its curing action is configured. Which is all vital in ensuring a good solid print, all the way along a components length.

Need Help?

This is a quick article on our CLS621 Printing Preferences, refer to your user guide for more details. Or for further assistance, contact our tech support & customer service team for help. For ribbons, supplies or plate media for your printer, try our online NP-Shop – trade account required.

Note: The settings shown above are needed for the best, repeatable high-quality prints. So using your CLS621 without them, will effect your number plate production & legality.
