This knowledge base article shows our recommended GoDex Operational Conditions. We’ve used these printers for specialist Trade Systems, because they’re adept and can print every number plate size & shape. In addition, it’s more robust with thermal technology that’s less susceptible to cooler conditions.

If you follow the recommendations set out below, you’ll have fewer print issues with your plate production. And you’ll end up with better quality number plates.

GoDex HD830i Printers

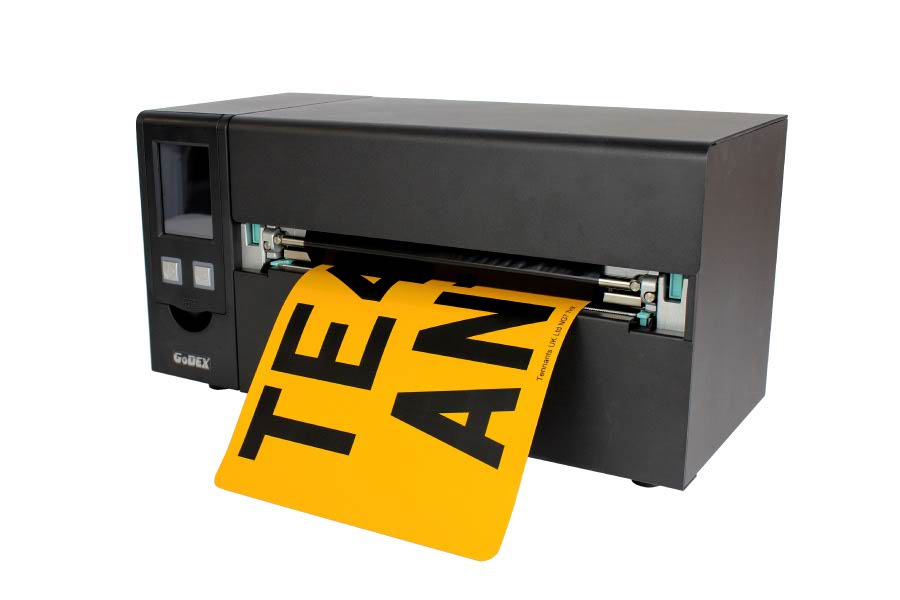

The GoDex HD830i Number Plate Printer

Your GoDex needs to be kept clean & dry

Each GoDex HD830i thermal printer we provide is modified with settings that require some basic conditions be met. For the best printing results, only operate them in locations where the following temperature, humidity and dust levels are met. Diverting from our recommendations can effect the print quality and thus the legality of your finished number plates.

Environmental Conditions

Godex Operational Conditions

Graph showing the environmental conditions for thermal printers

These settings are based on information from the printer manufacturer and results from our own internal testing with Oralite reflective sheets.

  • Temperature: 15 to 32°C
  • Humidity: 20 to 80% relative humidity
  • Dust: Dust particles may contaminate prints
  • Fumes: Some fumes & aerosols can effect prints
  • Assembly: 20°C and above

These thermal machines are more robust than laser printers, so they can be used in slightly cooler locations. Dust, grease and some airborne fumes can still present a risk to print quality by contaminating components or sticking to the print-head. So carry out your plate production away from the workshop or garage.

Some components, especially those already coated with adhesive, may require room temperatures of just over 20°C when assembling. We acknowledge that conditions in some summer and autumn months may be more forgivable regarding temperatures and humidity levels.

Operating Space

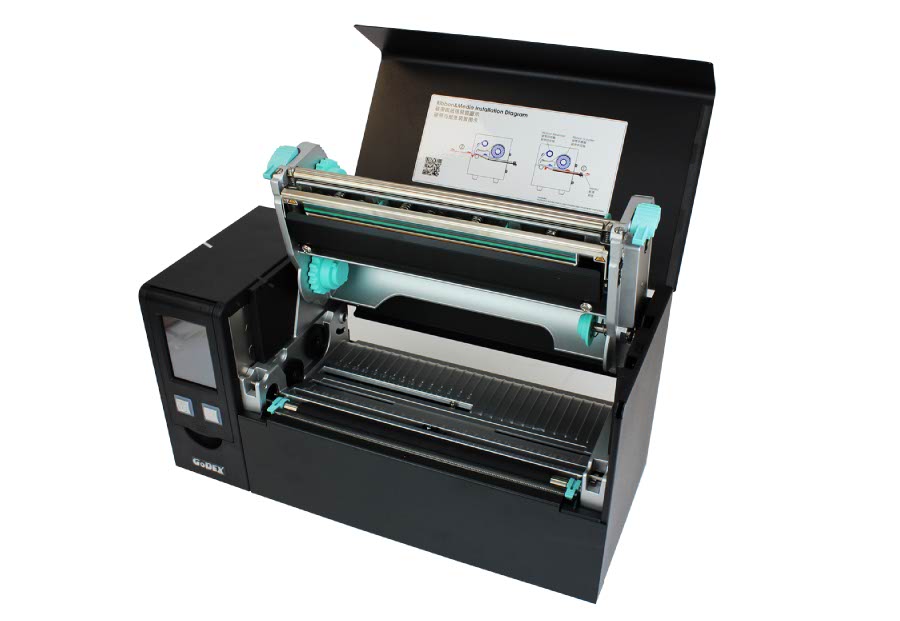

GoDex Operating Space

Room is needed all around the printer for access

Enough space should be provided all around these printers for ventilation and to access the machine. For instance, these are front output machines, so you will need room for prints to emerge. Place the printer on a flat desk or worktop large enough to accommodate it and at a height comfortable for you to operate.

Your setup will determine how much clearance you require. For example, do you use a the rear media tray for sheets? Once again, ensure you can comfortably load it with new plate media. And don’t neglect your plate assembly area, especially when using a roller jig.

Component Storage

Store all your plate media components in a dry, warm place away from excessively bright light. To avoid contamination from dust leave them in their packaging until use, and then only take out what you need. For best results wipe your reflective & clear acrylic with a lint free cloth before using them. And we recommend cleaning the print head regularly, while changing the ribbon or before a production run.

Need Help?

For more help with your work area, try your account manager. Or if you need further assistance with your number plates contact our customer service team for help.
