Install a C650 Feeder Tray

Install a C650 Feeder Tray

This knowledge base article shows you how to install a C650 feeder tray, used when loading clear film or reflective sheets for printing. The extended tray will hold and help feed your long components into the front multipurpose tray when printing number plates. It also comes with information printed onto it about the orientation to use and our quick contact details.

Remove the Existing Tray

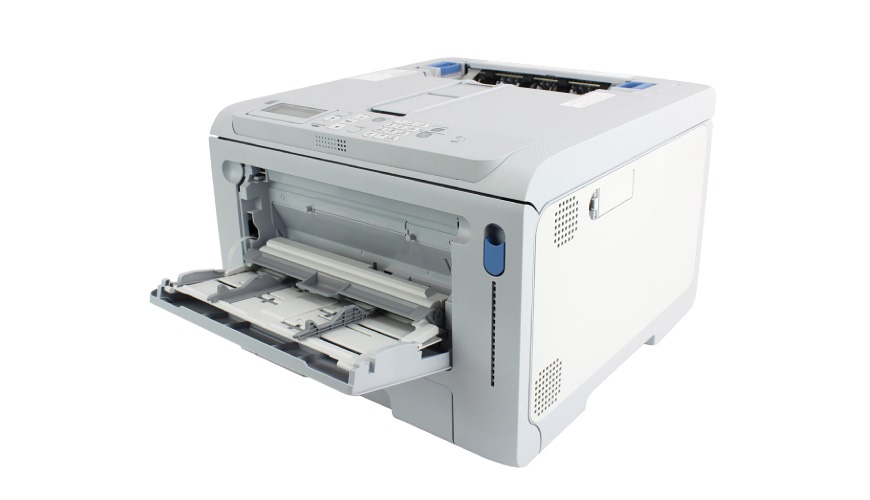

Remove the Existing C650 Tray

C650 ready for feeder tray

Before you install the extended media tray you will have to remove the existing paper or feeder tray from the multi-purpose tray. First, use the top notch and open up the printers front tray. Take hold of each side of the second tray down, the top tray has sliding media guides you’ll need, and gently push the sides down. Now bow the centre upwards, this will enable you to simply slide the tray forwards, out of its housing slots.

Install C650 Feeder Tray

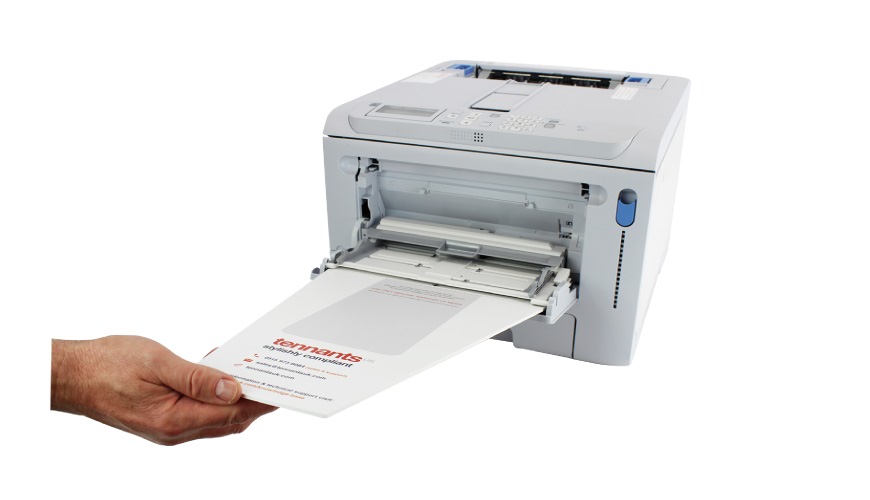

Install a C650 Feeder Tray

Push in the Feeder Tray

Position the feeder tray with the printed side facing upwards and the cut out slots towards the printer. Gently bend the sides downwards, bowing the centre up and push the tray home into the housing slots left by the removed paper tray. Make sure you push the tray all the way into the housing slots to finish installing it.

The tray works exactly the same as a native tray, by using gravity to help slide components down towards the rollers which pull them into the printing mechanism.

Load Your Sheets

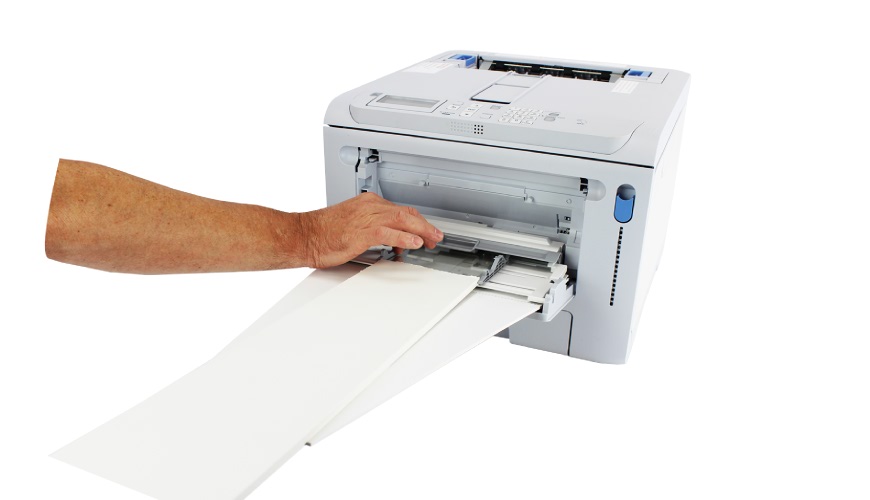

Load Film Sheets on the Feeder Tray

Load media on your tray

Now the feeder tray is installed, you’re ready to load plate components onto it. To use, simply place your sheets onto the tray and butt them right up to the printer. But ensure you place it with the side you wish to print on facing upwards. If you have badged media, orientate it with the flags situated furthest away from the printer. And use the sliding guides on the top tray to help secure your media into place.

Need Help or a Replacement Feeder Tray?

When we install your C650 number plate printer the first time, you’ll also receive a feeder tray. For a replacement C650 Feeder Tray, try the Tennants NP-Shop, a shop account is required for online purchases. Designed and built to fit the OKI C650 printer, it will simply slot right into the multi-purpose tray.

For more helps, try your account manager or user guide. Or if you need further assistance with your number plate printer contact our customer service team for help.
