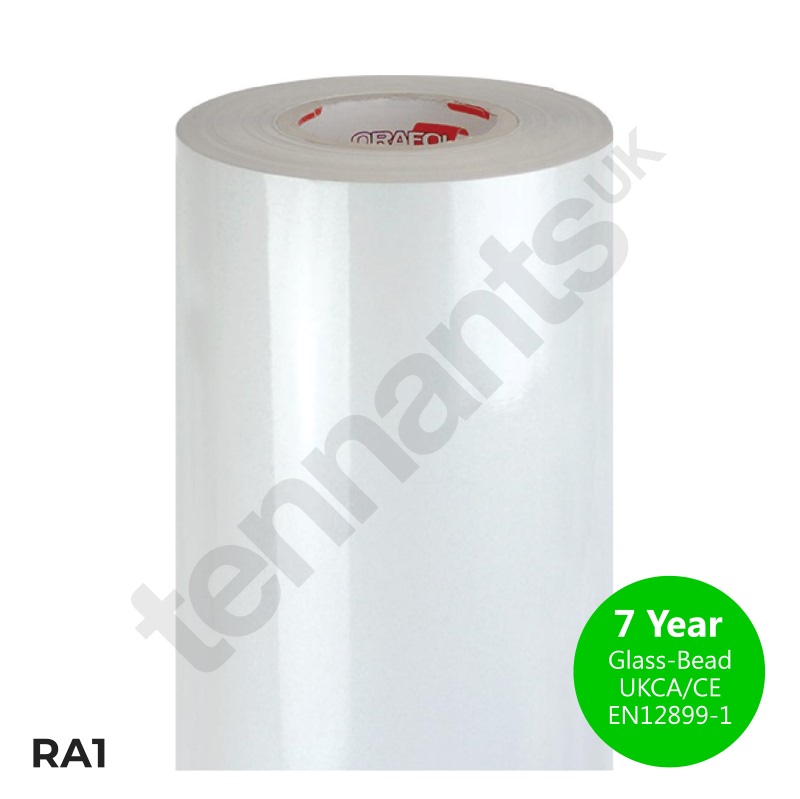

Oralite 5510 Engineer Grade

Oralite 5510 Engineer Grade is a glass bead reflective UKCA certified at RA1 for making permanent traffic and pedestrian signs. This lightly speckled reflective has a smooth surface perfect for printing and cut graphics.

5510 Spec Sheet

Colours

Roll Widths 760mm 920mm 1235mm

Class RA1 – UKCA/CE EN12899-1

Oralite 5510 is intended for smaller scale permanent signs aimed at walkers, cyclists and horse riders. Since it covers signs for public bridleways and paths with moderate levels of visibility. This speckled, glass bead reflective is certified to EN 12899-1 and CE/UKCA accredited at RA1. And has a surface finish compatible with both screen printing and cut graphic applications.

Featuring a 7 year outdoor service life, Oralite 5510 film comes in 760mm, 920mm and 1235mm widths. In addition to 5071 lettering film, a range of overlays help maintain its performance & durability. The Orafol webpage for Oralite 5510 Engineer Grade has more details, data sheets, certificates & application instructions.

Quick-Specs

Film: Oralite 5510 Engineer Grade
Tech: RA1 Glass Bead Film
Roll Widths: 760 / 920 / 1235mm
Roll Length: 50 metre rolls
ST Colours: 0.110mm thick

Material Details

Reflective Class: RA1 – UKCA/CE Certified
Standard: EN 12899-1 / NHSS
Alkyd Film with Silicone Paper Liner
Technology: Glass Bead
Durability: 7 year life
Colours: 7 Standard
Pressure Sensitive Adhesive for Metallic Surfaces

Compatible Products

Transparent Film Overlay: 5051
Anti-Graffiti Overlay: 5095
Anti-Dew Overlay: 5090
Screen Ink: 5018
Lettering Film: 5071

Colours & Pattern

Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.

Standard Colours

5510-010-White

010 White

5510-020-Yellow

020 Yellow

5510-030-Red

030 Red

5510-035-Orange

035 Orange

5510-050-Blue

050 Blue

5510-060-Green

060 Green

5510-080-Brown

080 Brown

Oralite 5510 Downloads

The Orafol website has a selection of certificates, instructions & data sheets for Oralite 5510. Below you will find a set of external links going to some of those downloads. Please note, film brochures, a declaration of performance and links to compatible materials are also available.
