Oralite 5200 Economy Grade

Providing a basic level of reflectivity, Oralite 5200 Economy Grade is certified to BS8442 & Class-1 for temporary signs. This glass-bead reflective comes with a 3 year durability and has a High-Tack version 5230.

5200 Spec Sheet
760mm 920mm 1235mm

Oralite 5200 Economy Grade is aimed at the makers of temporary work-zone signs & notices. Since it provides a sufficient level of reflectivity, so it’s visible to drivers and pedestrians. This lightly speckled, glass bead reflective is certified to BS8442 at Class-1. In addition, it has a smooth surface finish that’s suitable for both digital and screen printing.

Oralite 5200 offers a 3 year service life and comes in 6 standard colours, available across 3 sizes. Not to mention 2 specialist variants in 5200RA and 5230 High-Tack. Furthermore it has a range of fully compatible overlays, lettering film and inks. The Orafol webpage for Oralite 5200 Economy Grade has more details, data sheets, certificates & application instructions.

Quick-Specs

Film: Oralite 5200 Economy Grade
Tech: Class-1 Glass Bead Reflective
Roll Widths: 760 / 920 /1235
Roll Length: 50 metre rolls
ST Colours: 0.100mm thick
Variant: 5230 High-Tack / 5200RA Rapid Air

Material Details

  • Reflective Class: Class-1
  • Standard: BS8442
  • PVC Film with Silicone Paper Liner
  • Technology: Glass Bead
  • Durability: 3 year life
  • Colours: 6 Standard
  • Pressure Sensitive Adhesive for Metallic Surfaces

Compatible Products

  • Digital Ink: 5019i (uv) / 5017 (eco)
  • Transparent Film Overlay: 5051
  • Protective Overlay: 290F / 293F
  • Screen Ink: 5018
  • Lettering Film: 5071

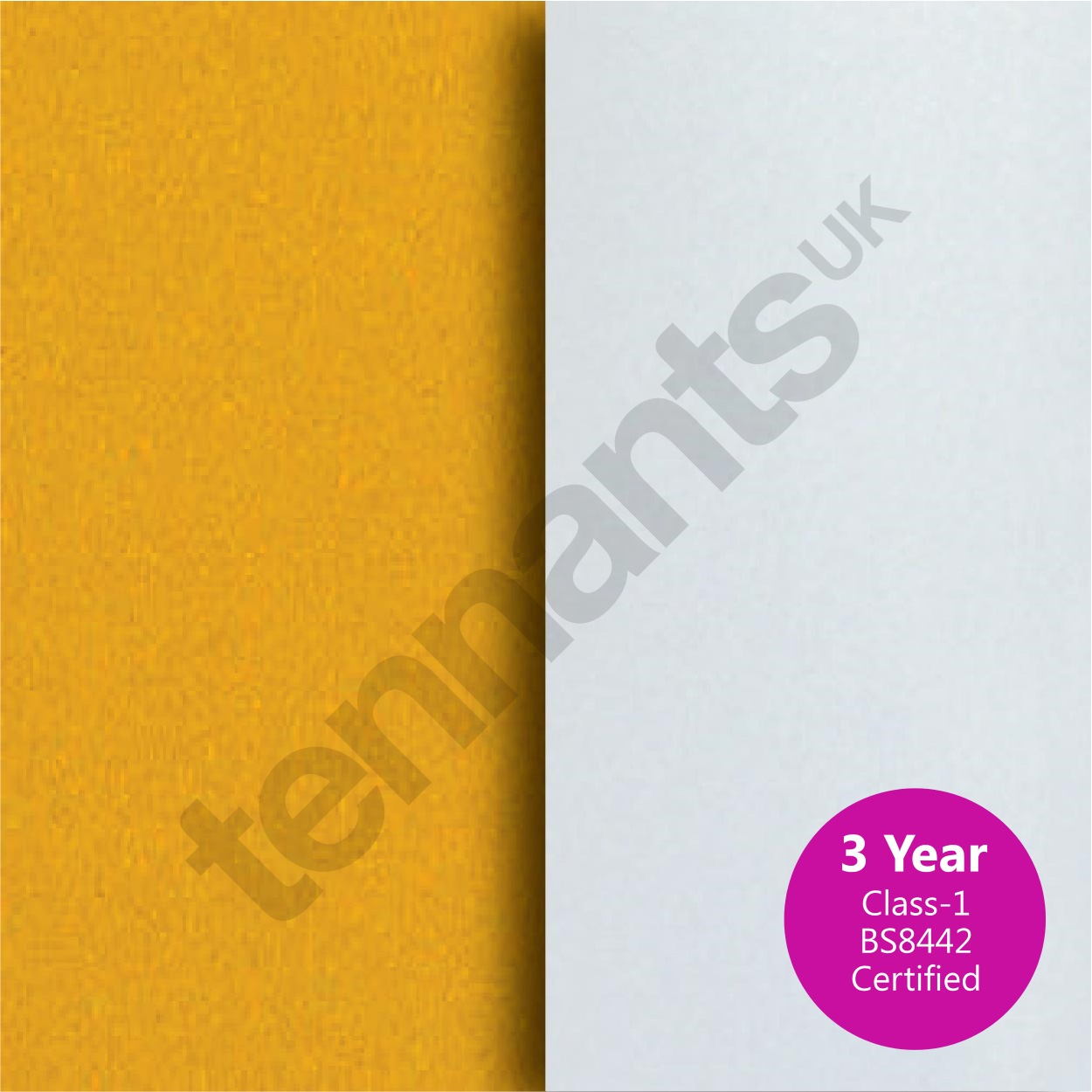

Colours & Pattern

Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.

Standard Colours

Oralite 5200 Downloads

The Orafol website has a selection of data-sheets, instructions & safety info for Oralite 5200. Below you will find a set of links for those downloads.

Traffic Signs & Construction Zones
Data Sheet
Application Instructions
Safety Info
