Oralite 5810 High-Intensity Grade

Oralite 5810 High-Intensity Grade is a smooth glass bead film, CE/UKCA certified at RA2 for permanent traffic signs. This glass-bead reflective comes with a 10 year durability and has Digital Print & High-Tack version.

5810 Spec Sheet
760mm 920mm 1235mm

Oralite 5810 High-Intensity Grade is a versatile film for making permanent traffic sign applications. Including large scale advanced directional assemblies, requiring high levels of reflectivity and performance. This glass bead film features a smooth surface that’s suitable for both digital or screen printing. Moreover it’s certified to EN 12899-1 and is CE/UKCA accredited at RA2.

Features a 10 year outdoor service life and comes in 7 standard colours. To help maintain its performance and meet certification there’s a range of compatible products. In addition, Oralite 5810 has a digital print variant 5810DP and a High-Tack version in 5830. The Orafol webpage for Oralite 5810 High-Intensity Grade has more details, data sheets, certificates & application instructions.

Oralite 5810 Quick-Specs

Film: Oralite 5810 High-Intensity Grade
Tech: RA2 Glass Bead Film
Roll Width: 760 / 920 / 1235mm
Roll Length: 50 metre rolls
ST Colours: 0.210mm thick
Variants: 5810DP Digital Print / 5830 High-Tack

Material Details

  • Reflective Class: RA2 – UKCA/CE Certified
  • Standard: EN 12899-1 / NHSS
  • Acrylic Film with Polypropylene Liner
  • Technology: Glass Bead
  • Durability: 10 year life*
  • Colours: 7 Standard
  • Pressure Sensitive Adhesive for Metallic Surfaces

Compatible Products

  • Digital Ink: 5019i (uv) / 5017 (eco)
  • Transparent Film Overlay: 5061
  • Anti-Graffiti Overlay: 5095
  • Screen Ink: 5018
  • Lettering Film: 5081

Durability* Non-Printed

Colours & Pattern

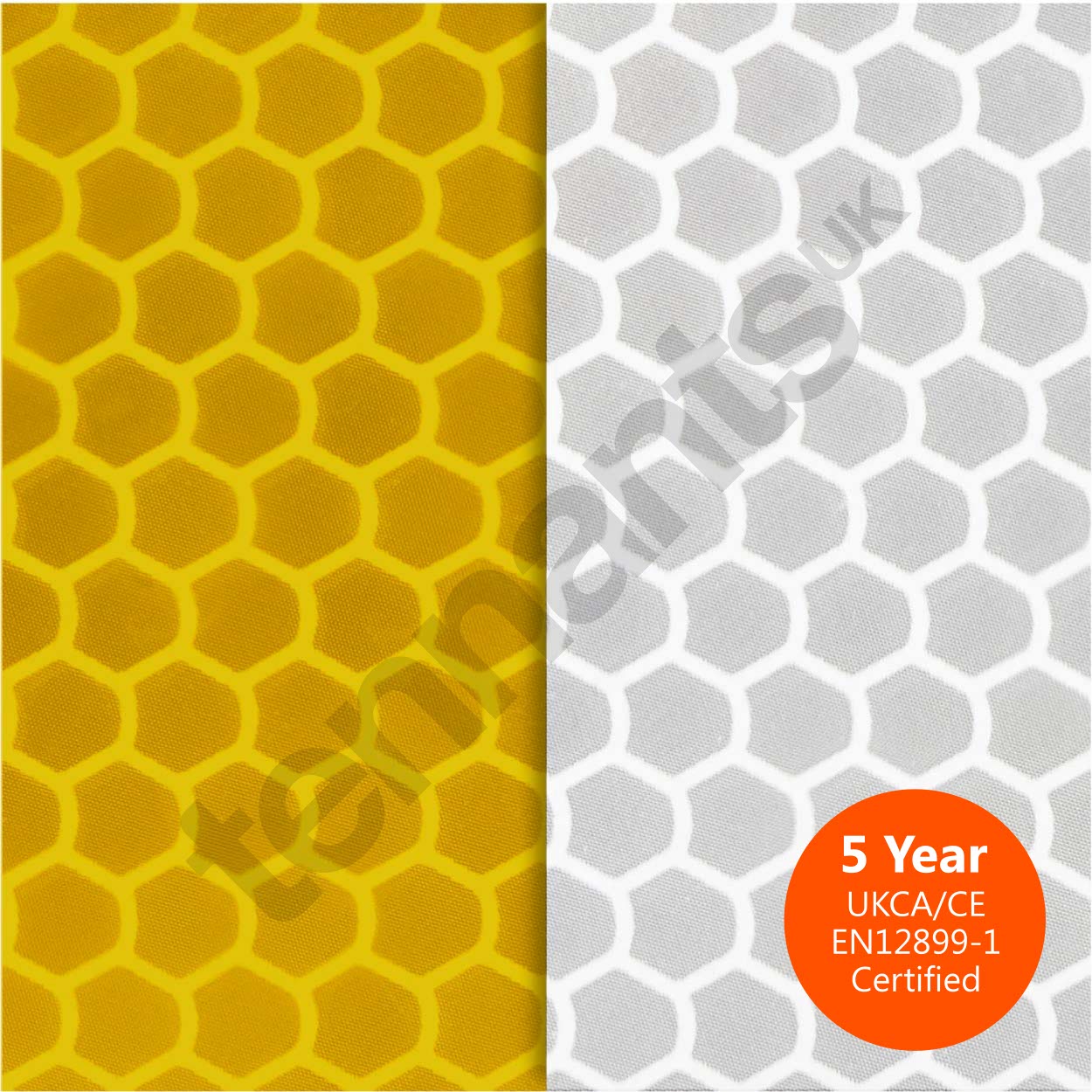

Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.

Standard Colours
Watermarked - Icon

Oralite 5810 Downloads

The Orafol website has a selection of certificates, instructions & data sheets for Oralite 5810. Below you will find a set of external links going to some of those downloads. Please note, film brochures, a declaration of performance and links to compatible materials are also available.

UKCA Accreditation
CE Certification
Data Sheet
Application Instructions
Safety Sheet
