Oralite 5860 High-Intensity Construction Grade

A glass-bead reflective for temporary road signs, Oralite 5860 High-Intensity Construction Grade is certified to EN12899-1 at RA2. This glass-bead film has a 5 year durability and can be digitally and screen printed.

5860 Spec Sheet
760mm 920mm 1235mm

Oralite 5860 High-Intensity Construction Grade is formulated to provide high levels of reflectivity and strong visibility. Aimed at the production of temporary traffic control & guidance signs for medium terms. This durable, glass bead reflective is suitable for both screen and digital printing. Thanks in large part to its smooth surface. A range of compatible overlay help to maintain its RA2 class & 5 year durability.

In addition to a pressure sensitive adhesive for metallic surfaces, Oralite 5860 is available in 3 widths and 6 colours. Although only 1235mm rolls cover all 6 colours. The Orafol webpage for Oralite 5860 High-Intensity Construction Grade has more details, data sheets, certificates & application instructions.

Oralite 5860 Quick-Specs

Film: Oralite 5860 High-Intensity Construction Grade
Tech: RA2 Glass Bead Film
Roll Widths: 760 / 920 / 1235mm
Roll Length: 50 metre rolls
ST Colours: 0.210mm thick

Material Details

  • Reflective Class: RA2
  • Standard: EN 12899-1 / NHSS
  • Acrylic Film with Polypropylene Liner
  • Technology: Glass Bead
  • Durability: 5 year life
  • Colours: 6 Standard
  • Pressure Sensitive Adhesive for Metallic Surfaces

Compatible Products

  • Digital Ink: 5019i (uv) / 5017 (eco)
  • Transparent Film Overlay: 5061
  • Anti-Graffiti Overlay: 5095
  • Screen Ink: 5018
  • Lettering Film: 5081

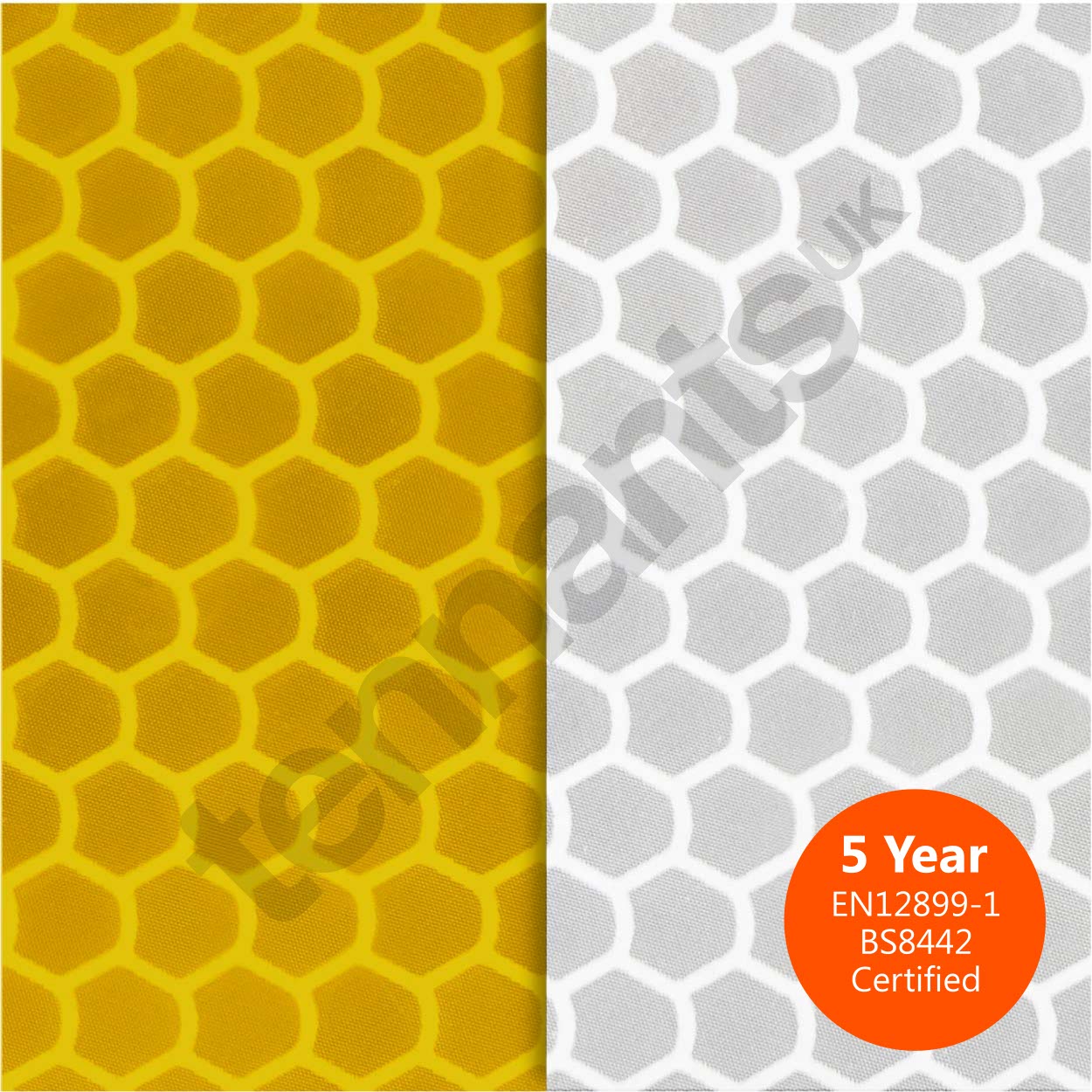

Colours & Pattern

Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.

Standard Colours
Watermarked - Icon

Oralite 5860 Downloads

The Orafol website has a selection of data-sheets, instructions & safety info for Oralite 5860. Below you will find a set of links for those downloads.

Traffic Signs & Construction Zones
Data Sheet
Application Instructions
Safety Info
