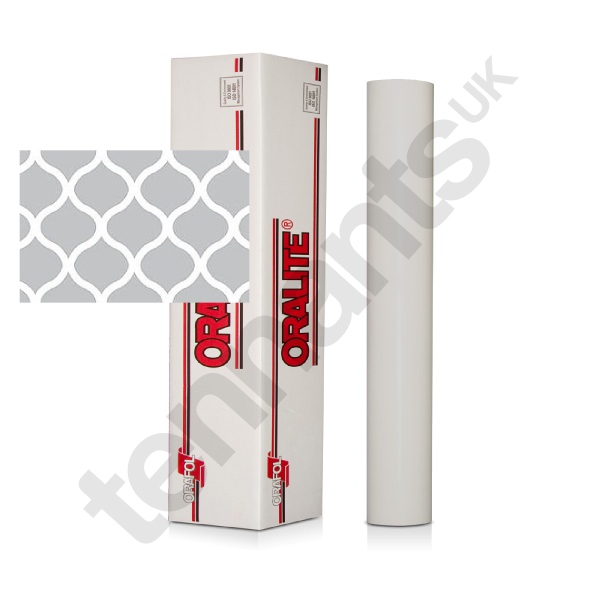

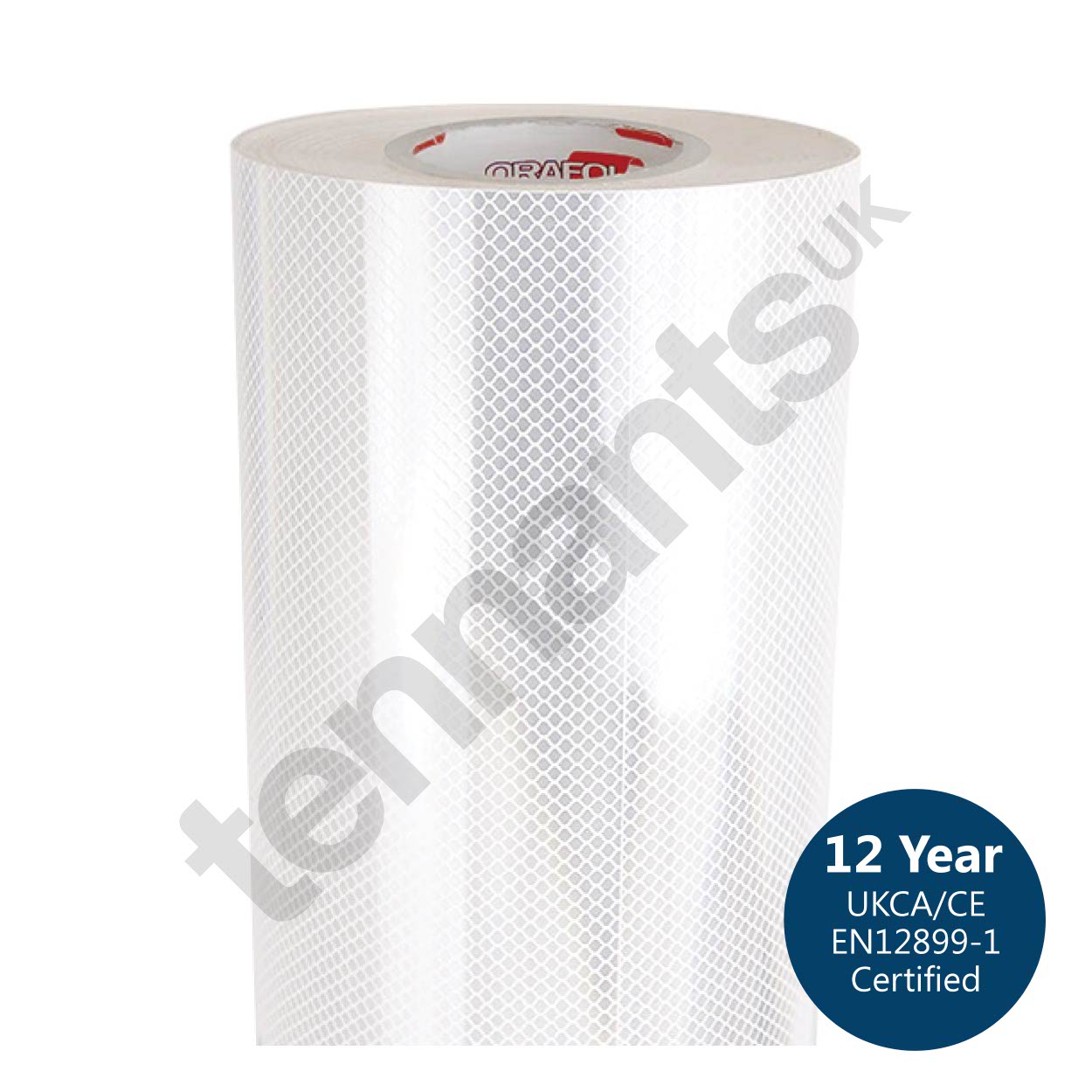

Oralite 6910 Brilliant Grade
Formulated for high levels of reflectivity, Oralite 6910 Brilliant Grade is UKCA certified to EN12899-1, Class RA3B. This traffic sign film has a 12 year durability and also has High-Tack and Translucent versions.
Class RA3B – UKCA/CE EN12899-1
Oralite 6910 Brilliant Grade film has been designed for permanent, vertically mounted directional and informatory traffic signs, specifically in high-speed areas where maximum impact is necessary. This prismatic material produces high levels of retroreflectivity, allowing road users to see and interpret critical messages in the shortest possible time.
Alongside a 12 year outdoor service life, Oralite 6910 comes in 7 standard & 3 fluorescent colours. And this RA3B reflective film has a fully compatible line of protective and specialist laminates. Not to mention a High-Tack and Translucent version for use on plastic substrates & illuminated bollards. The Orafol webpage for Oralite 6910 Brilliant Grade has more details, data sheets, certificates & application instructions.
Quick-Specs
Film: Oralite 6910 Brilliant Grade
Tech: RA3B Retroreflective Prismatic Film
Roll Width: 1235mm
Roll Length: 50 metre rolls
ST Colours: 0.345mm thick
FL Colours: 0.385mm thick
Variants: 6910T Translucent / 6910HT Hi-Tack
Material Details
- Reflective Class: RA3B – UKCA/CE Certified
- Standard: EN 12899-1 / NHSS
- Acrylic Film with Polypropylene Liner
- Technology: Prismatic
- Durability: 12 year life*
- Colours: 7 Standard / 3 Fluorescent
- Pressure Sensitive Adhesive for Metallic Surfaces
Compatible Products
- Digital Ink: 5019i (uv) / 5017 (eco)
- Transparent Film Overlay: 5061
- Anti-Dew Overlay: 5090
- Anti-Graffiti Overlay: 5095
- Screen Ink: 5018
- Lettering Film: 5081
Durability* ST 12yrs / FL 10yrs / FL Orange 3yrs

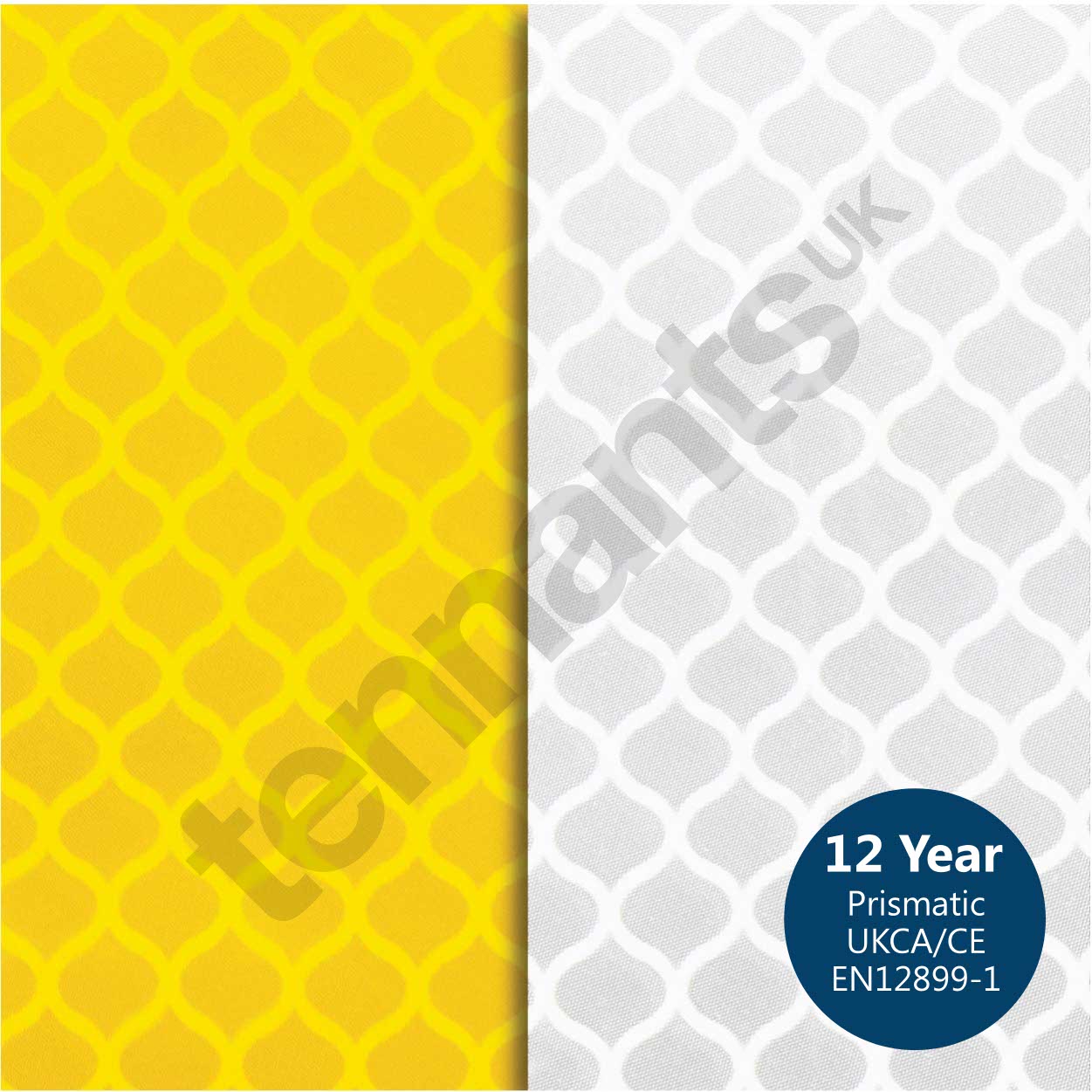

Colours & Pattern
Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.
Standard Colours
Fluorescent Colours
Oralite 6910 Downloads
The Orafol website has a selection of certificates, instructions & data sheets for Oralite 6910. Below you will find a set of external links going to some of those downloads. Please note, film brochures, a declaration of performance and links to compatible materials are also available.
UKCA Accreditation
CE Certification
Data Sheet
Application Instructions
Safety Sheet
