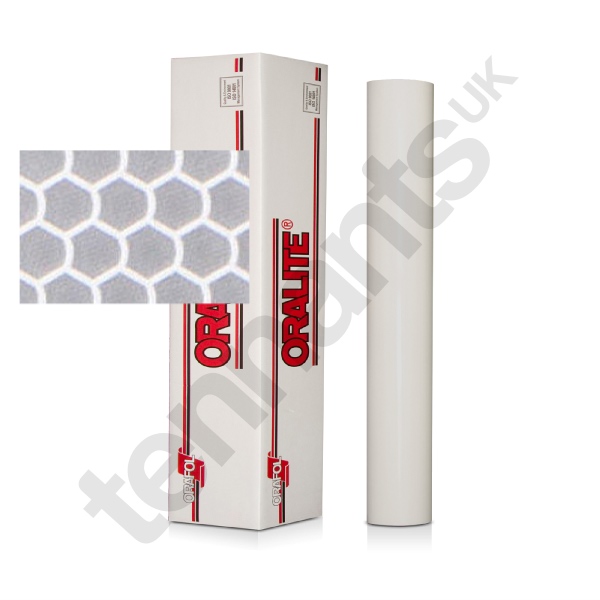

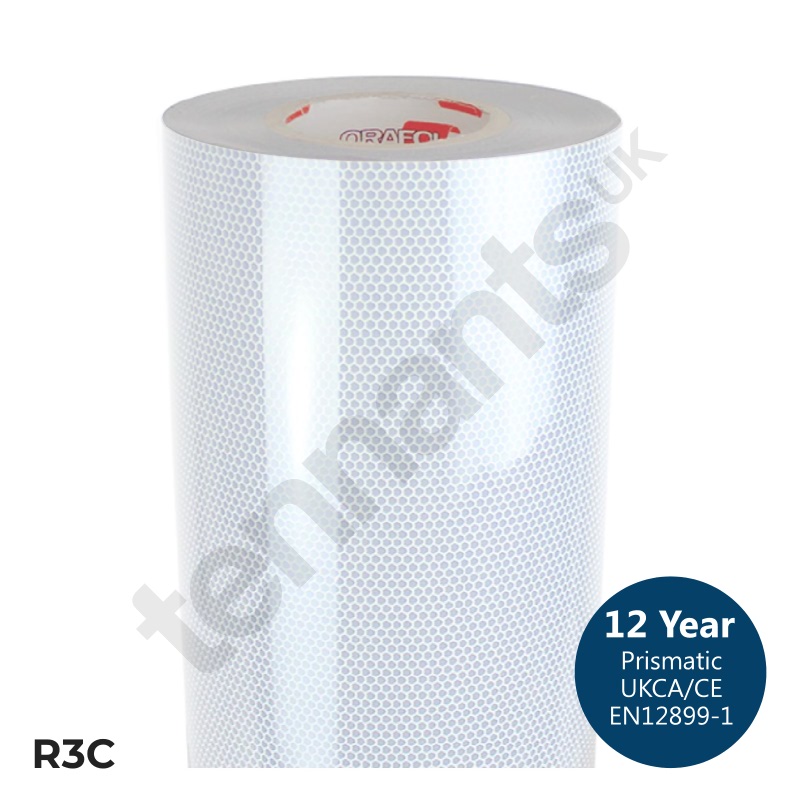

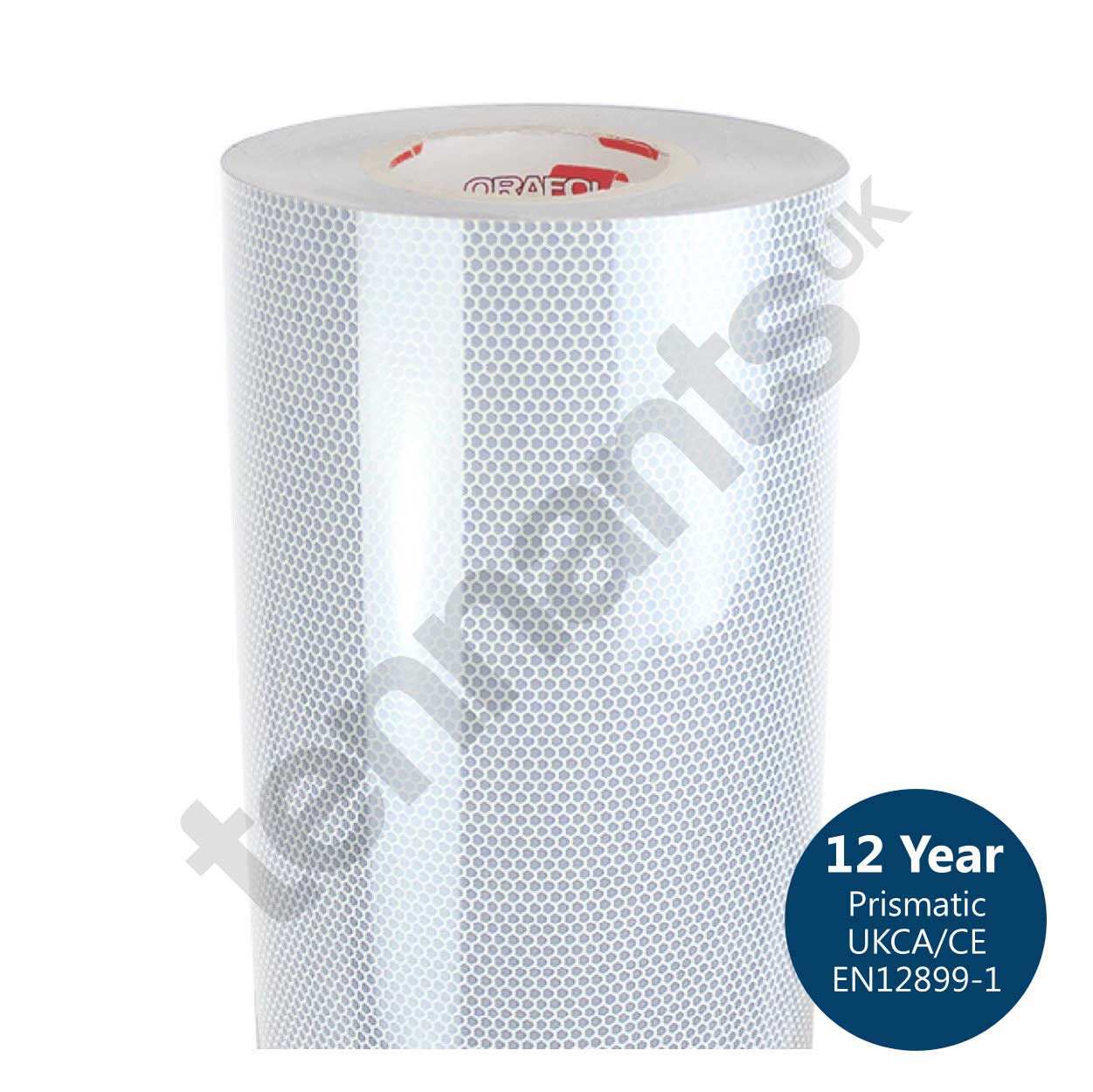

Oralite 9910 Brilliant Grade Premium

Oralite 9910 Brilliant Grade Premium is UKCA certified to EN12899-1, Class R3C and provides the maximum level of reflectivity. This prismatic film has a 12 year durability, approved overlay and is compatible with our Traffic Printers.

9910 Spec Sheet
1235mm

Oralite 9910 Brilliant Grade Premium has been specially formulated for motorway signs and gantries, other high speed dual carriageways and areas identified as high risk. Its prismatic construction achieves the highest grade of retroreflectivity available to the traffic sign industry. So Oralite 9910 ensures your directional and warning messages are clear and impactful, minimising the risk of accidents.

This traffic sign film comes with a 12 year outdoor service life and is available in 10 colours. This R3C prismatic reflective is top of the range, with a fully compatible line of clear protective and anti-dew laminates. The Orafol webpage for Oralite 9910 Brilliant Grade Premium has more details, data sheets, certificates & application instructions.

Quick-Specs

Film: Oralite 9910 Brilliant Grade Premium
Tech: R3C Retroreflective Prismatic Film
Roll Width: 1235mm
Roll Length: 50 metre rolls
ST Colours: 0.370mm thick
FL Colours: 0.420mm thick

Material Details

  • Reflective Class: R3C – UKCA / CE Certified
  • Standard: EN 12899-1 / NHSS
  • Acrylic Film with Polypropylene Liner
  • Technology: Prismatic
  • Durability: 12 year life*
  • Colours: 7 Standard / 3 Fluorescent
  • Pressure Sensitive Adhesive for Metallic Surfaces

Compatible Products

  • Digital Ink: 5019i (uv) / 5017 (eco)
  • Transparent Film Overlay: 5061
  • Anti-Dew Overlay: 5090
  • Anti-Graffiti Overlay: 5095
  • Screen Ink: 5018
  • Lettering Film: 5081

Durability* ST 12yrs / FL 10yrs / FL Orange 3yrs

Colours & Pattern

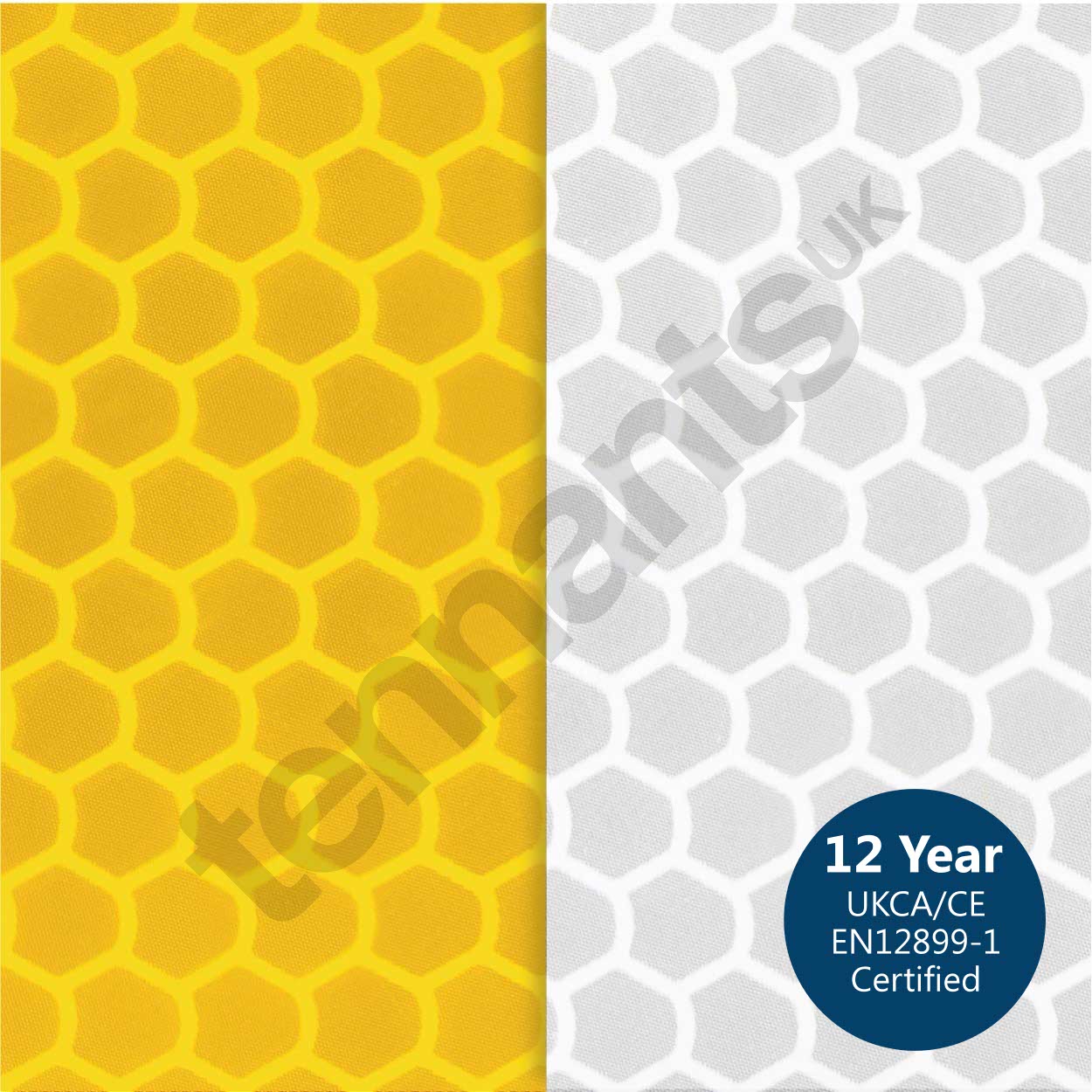

Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.

Standard Colours
Fluorescent Colours
Watermarked - Icon

Oralite 9910 Downloads

The Orafol website has a selection of certificates, instructions & data sheets for Oralite 9910. Below you will find a set of external links going to some of those downloads. Please note, film brochures, a declaration of performance and links to compatible materials are also available.

Oralite 9910 Traffic Signs
UKCA Accreditation
CE Certification
Data Sheet
Application Instructions
Safety Sheet
