Turn On the 9542

Turn On the 9542 Printer

This knowledge base article shows how to turn on the 9542 printer when starting a number plate production run. Follow these simple instructions and ensure the power is turned off on the OKI printer and your computer until ready. We recommend using the USB cable to connect to a PC because it’s easier to set up and windows will do the majority of the work for you.

Check Cables are Connected

Connect the 9542 to your PC and to the mains power

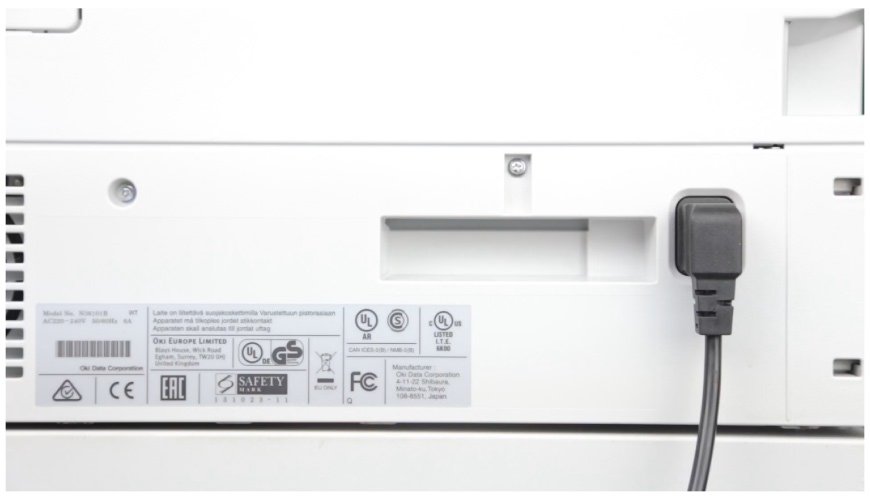

Check the mains power cable is inserted

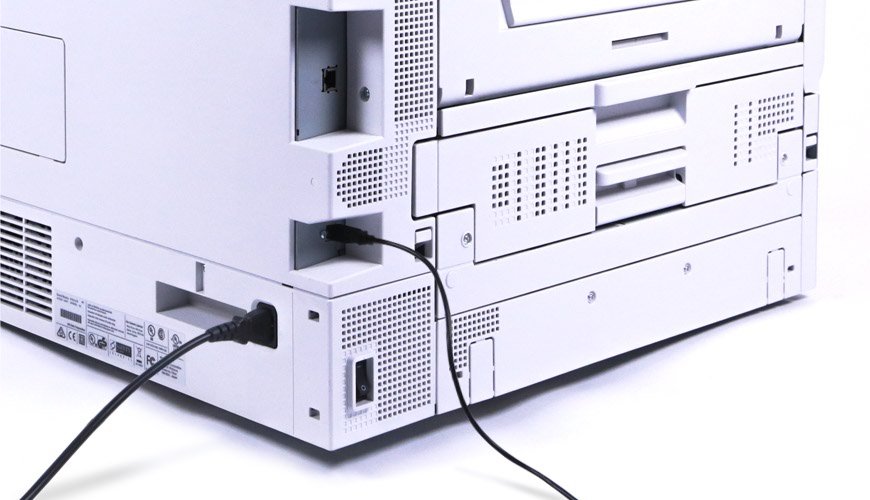

Here are your 9542 printers Connectivity Ports

Are USB or Ethernet cables connected?

Start by checking the power lead and the connectivity cable are connected to the printer and the computer securely. The ports can be found on your printers rear and left hand corner. The top port is used for Ethernet cables and the bottom port for USB connections.

Turn On the 9542 Printer

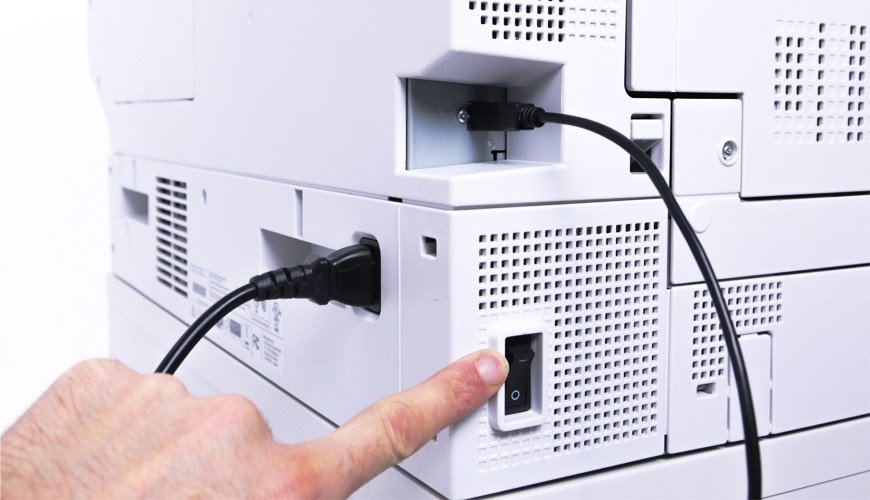

Turn on up the 9542 printers power

Switch the mains power on at the rear

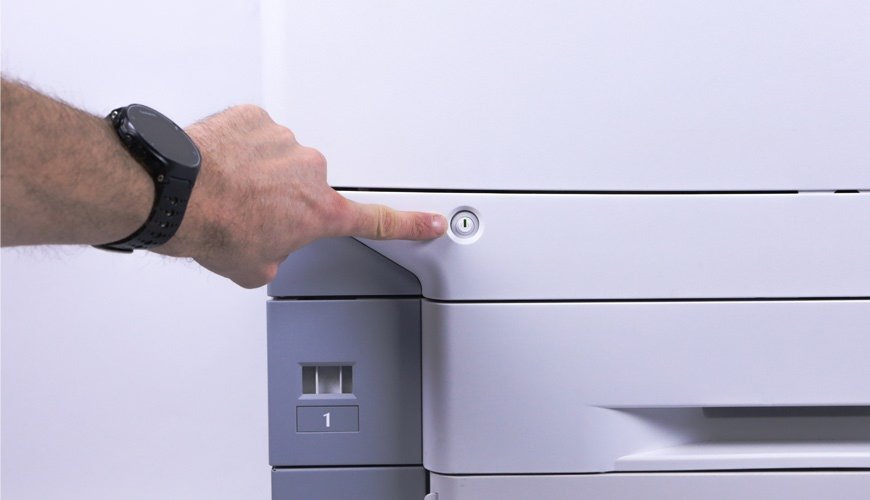

Here is you 9542 printer front power button

Turn your printer on using the front power button

Once you’re happy the cables are all securely connected, turn on the mains power first. Next, turn the printers power switch to on – as shown in the image above. You will find it right below the USB & ethernet ports. And finally press your printers power button, located on the front left of the machine.

Turn On Your Computer

Turn your computer on next

Power up your laptop after the printer so it detects it

Next step is to power up and turn on the connected computer. Once it reaches the Windows desktop and has found the printer you’ll be ready to start work. If you have used an Ethernet cable to connect the printer to your network for sharing, it will need configuring and setting up.

How to Turn Off the 9542

Always turn off the printer when not in use or when cleaning the printer and its LED heads. Simply turn off your printer using the front power button, then toggle the mains switch to the off position.
