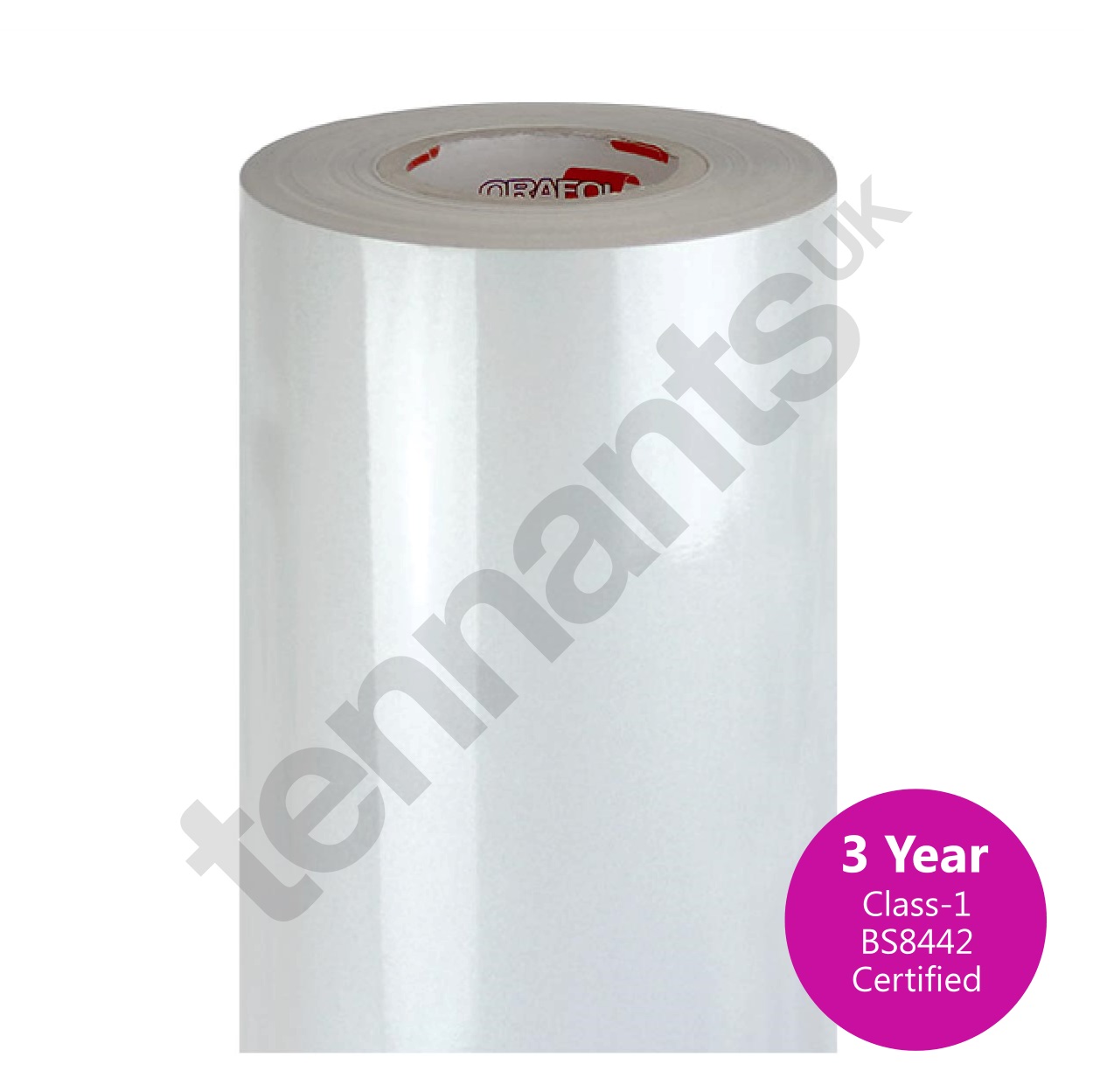

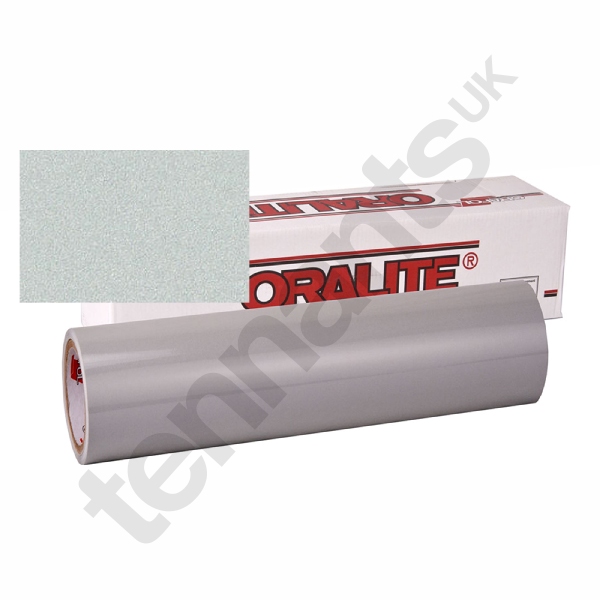

ORALITE 5230 Economy Grade
With a High-Tack adhesive for plastic & metal surfaces, ORALITE 5230 Economy Grade is certified to BS8442 at Class-1. This glass-bead reflective has a 3 year durability and is a specialist variant of 5200.
Class-1 / BS8442
ORALITE 5230 Economy Grade is designed for temporary road signs & notices that require greater adhesion. For it’s compatible with most traditional sign surfaces, regardless of substrate. Which is thanks to its aggressive adhesive, that’s formulated for some plastic as well as metal surfaces. This Hi-Tack glass-bead reflective is certified to BS8442 at Class 1. And a selection of compatible overlays help to maintain this performance.
Featuring a 3-year outdoor service life, ORALITE 5230 comes in 6 colours, available across 3 sizes. In addition to this specialist film, there’s a standard as well as a Rapid-Air version. The ORAFOL webpage for ORALITE 5200 Economy Grade has more details, data sheets, certificates & application instructions.
ORALITE 5230 Quick-Specs
Film: ORALITE 5230 Economy Grade
Tech: Class-1 Glass Bead Reflective
Roll Width: 760 / 920 / 1235mm
Roll Length: 50 metre rolls
ST Colours: 0.100mm thick
Variant: Hi-Tack version of 5200
Material Details
- Reflective Class: Class-1
- Standard: BS8442
- PVC Film with Silicone Paper Liner
- Technology: Glass Bead
- Durability: 3 year life
- Colours: 6 Standard
- Pressure Sensitive Hi-Tack Adhesive for Metal / Plastic*
Compatible Products
- Digital Ink: 5019i (uv) / 5017 (eco)
- Transparent Film Overlay: 5051
- Protective Overlay: 290F / 293F
- Screen Ink: 5018
- Lettering Film: 5071
Adhesive * Check Substrate Compatibility.

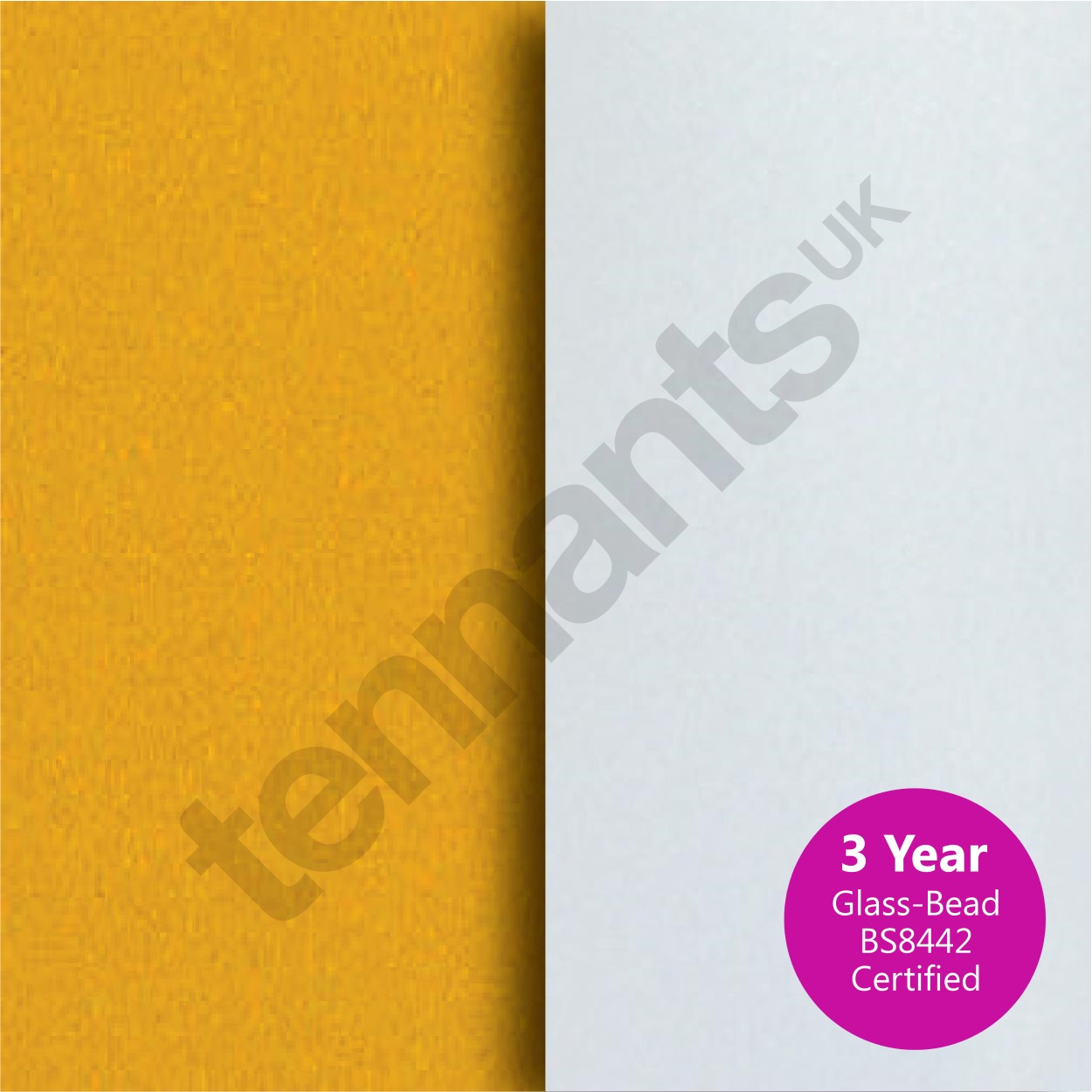

Colours & Pattern
Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.
Standard Colours
5230-010-White
010 White
5230-020-Yellow
020 Yellow
5230-030-Red
030 Red
5230-035-Orange
035 Orange
5230-050-Blue
050 Blue
5230-060-Green
060 Green
ORALITE 5230 Downloads
As a High-Tack variant, see the ORALITE 5200 webpage for a data-sheet, application instructions & safety info for ORALITE 5230. Below you will find a set of links for those downloads.
Traffic Signs & Construction Zones
Data Sheet
Application Instructions
Safety Info
