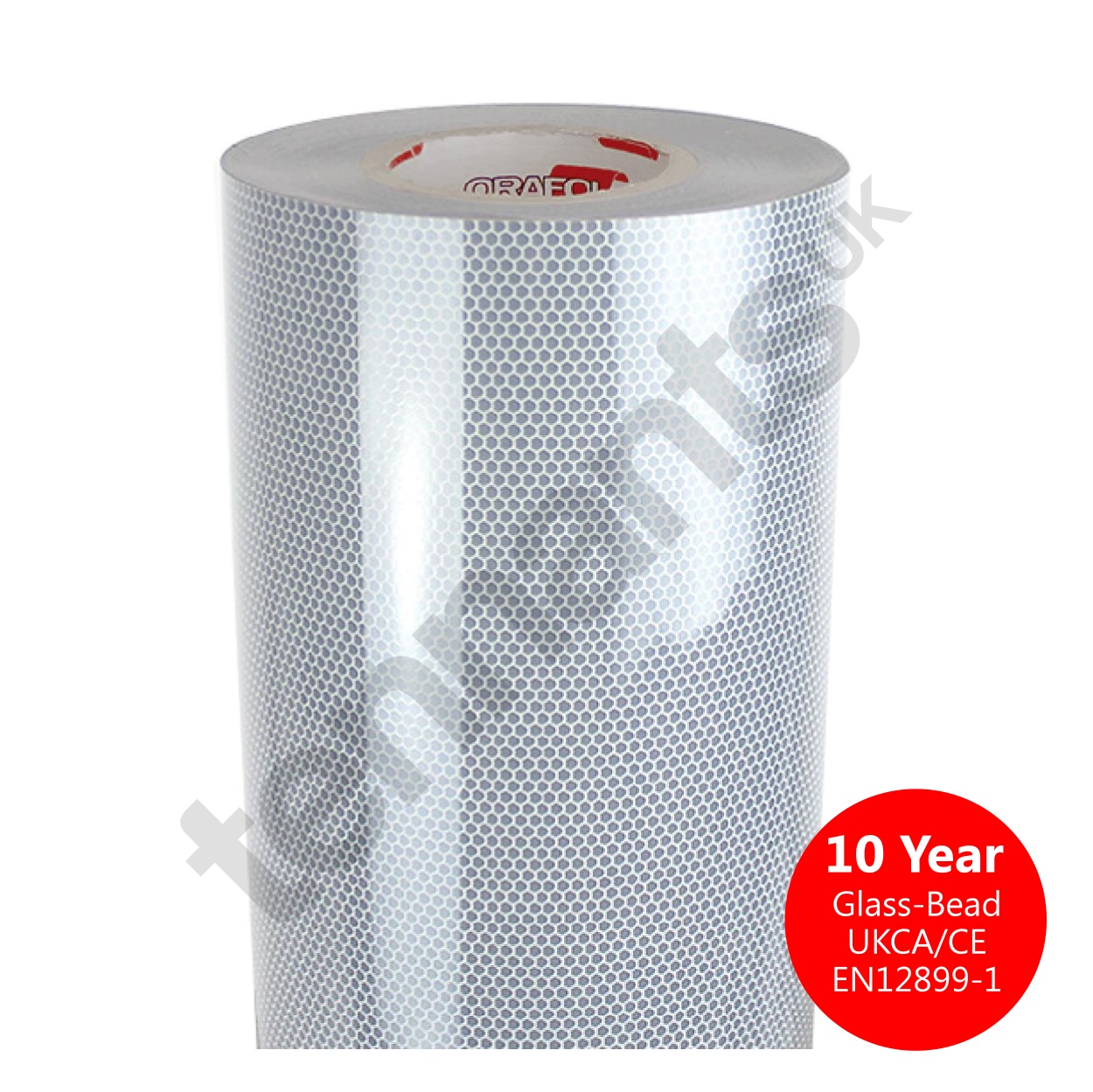

ORALITE 5810 High-Intensity Grade

ORALITE 5810 High-Intensity Grade is a smooth glass bead film, CE/UKCA certified at RA2 for permanent traffic signs. This glass-bead reflective comes with a 10 year durability and has Digital Print & High-Tack version.

5810 Spec Sheet

Colours

Roll Widths 760mm 920mm 1235mm

Class RA2 – UKCA/CE EN12899-1

ORALITE 5810 High-Intensity Grade is a versatile film for making permanent traffic sign applications. Including large scale advanced directional assemblies, requiring high levels of reflectivity and performance. This glass bead film features a smooth surface that’s suitable for both digital or screen printing. Moreover it’s certified to EN 12899-1 and is CE/UKCA accredited at RA2.

Features a 10 year outdoor service life and comes in 7 standard colours. To help maintain its performance and meet certification there’s a range of compatible products. In addition, ORALITE 5810 has a digital print variant 5810DP and a High-Tack version in 5830. The ORAFOL webpage for ORALITE 5810 High-Intensity Grade has more details, data sheets, certificates & application instructions.

ORALITE 5810 Quick-Specs

Film: ORALITE 5810 High-Intensity Grade
Tech: RA2 Glass Bead Film
Roll Width: 760 / 920 / 1235mm
Roll Length: 50 metre rolls
ST Colours: 0.210mm thick
Variants: 5810DP Digital Print / 5830 High-Tack

Material Details

Reflective Class: RA2 – UKCA/CE Certified
Standard: EN 12899-1 / NHSS
Acrylic Film with Polypropylene Liner
Technology: Glass Bead
Durability: 10 year life*
Colours: 7 Standard
Pressure Sensitive Adhesive for Metallic Surfaces

Compatible Products

Digital Ink: 5019i (uv) / 5017 (eco)
Transparent Film Overlay: 5061
Anti-Graffiti Overlay: 5095
Screen Ink: 5018
Lettering Film: 5081

Durability* Non-Printed

Colours & Pattern

Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.

Standard Colours

5810-010-White

010 White

5810-020-Yellow

020 Yellow

5810-030-Red

030 Red

5810-035-Orange

035 Orange

5810-050-Blue

050 Blue

5810-060-Green

060 Green

5810-080-Brown

080 Brown

ORALITE 5810 Downloads

The ORAFOL website has a selection of certificates, instructions & data sheets for ORALITE 5810. Below you will find a set of external links going to some of those downloads. Please note, film brochures, a declaration of performance and links to compatible materials are also available.
